| Model NO. | AGn16 | Brand | Astop |
| Gas Detected | CO2 | Sensor Type | NDIR (Non-Dispersive Infrared) |
| Measurement Range | 0-5000ppm | Certification | CE |
| Accuracy | ±50ppm or ±5% of Reading | Warm-up Time | 15 Sec |
| Battery | Internal 1000mA Rechargeable | Screen | LCD with 3-Stage Backlight |

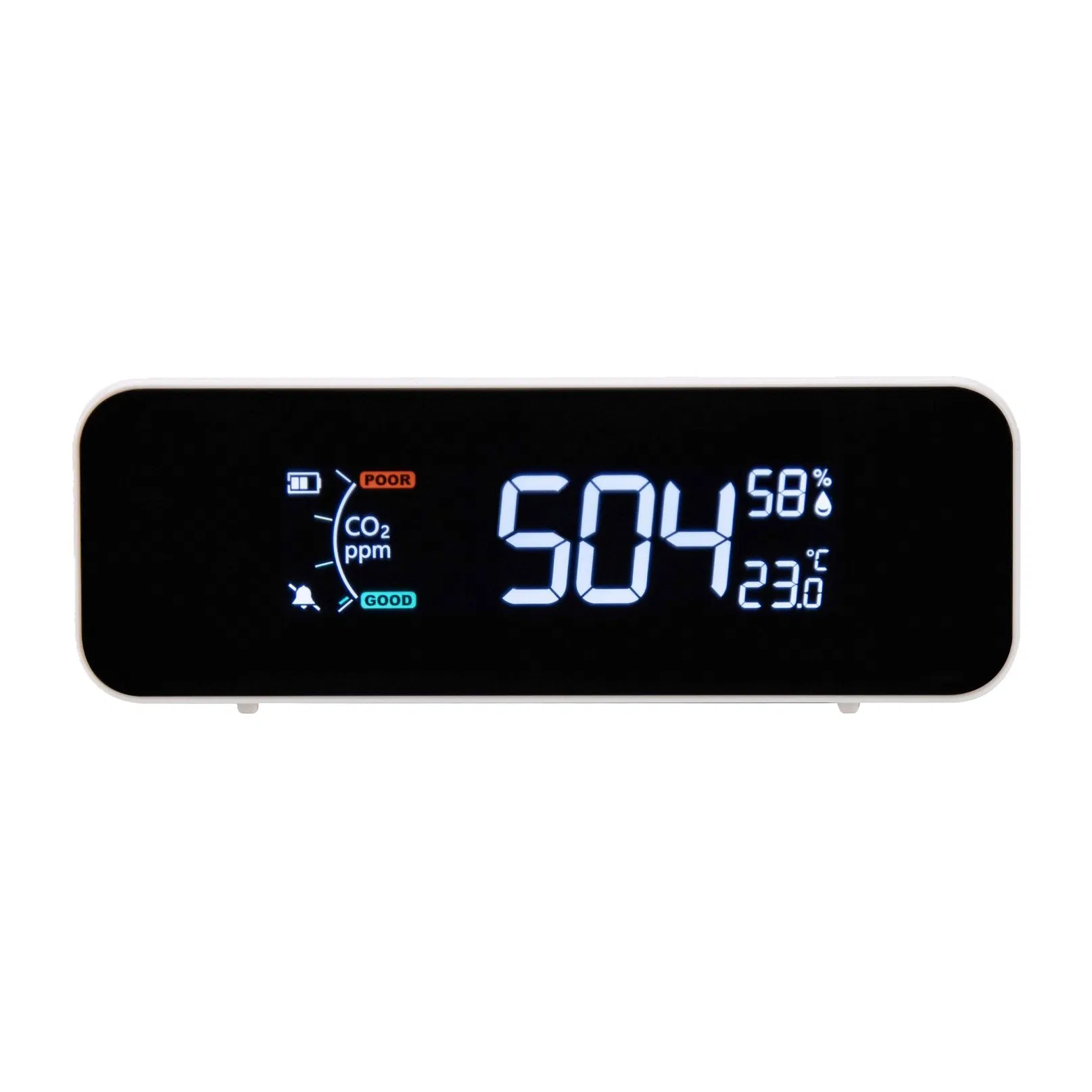

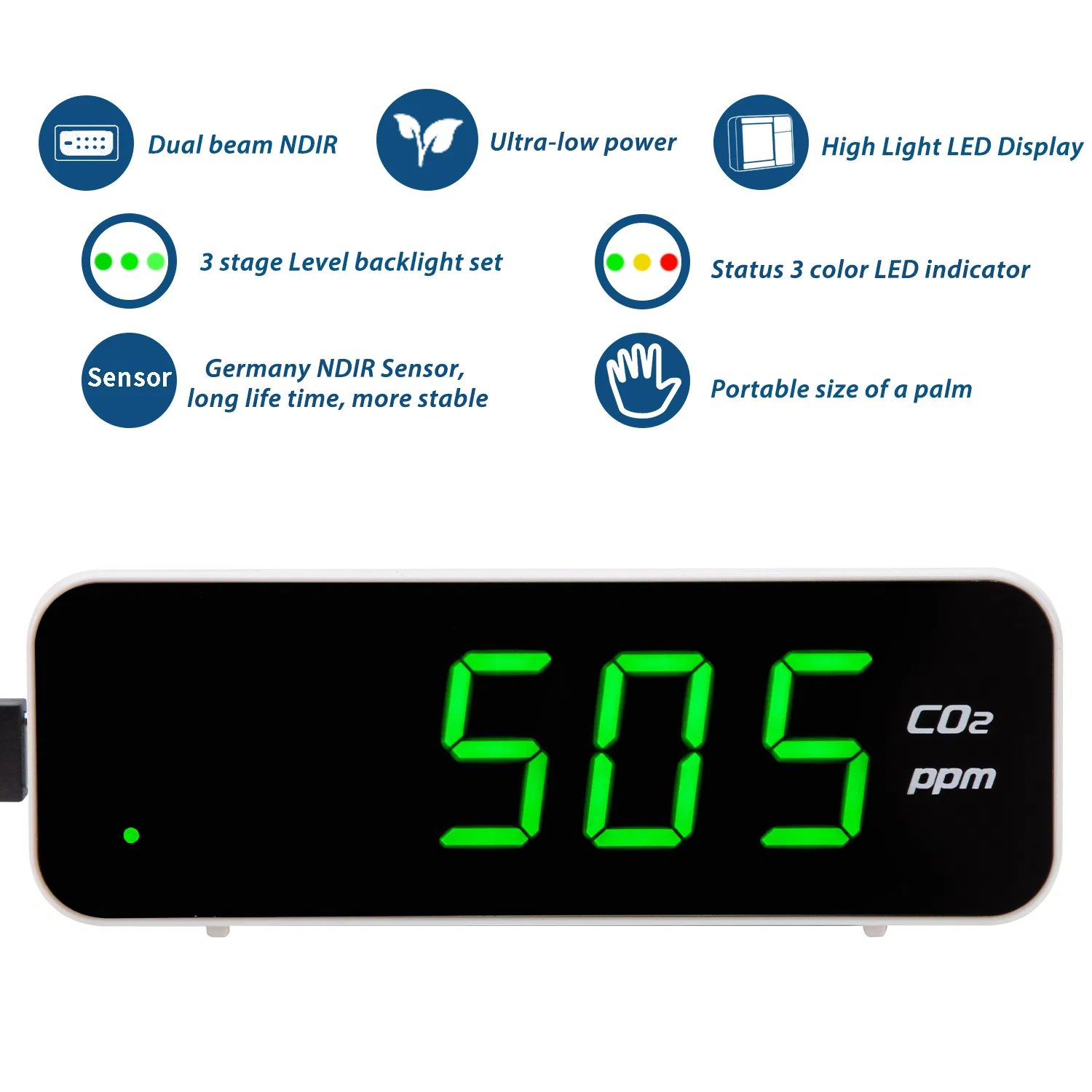

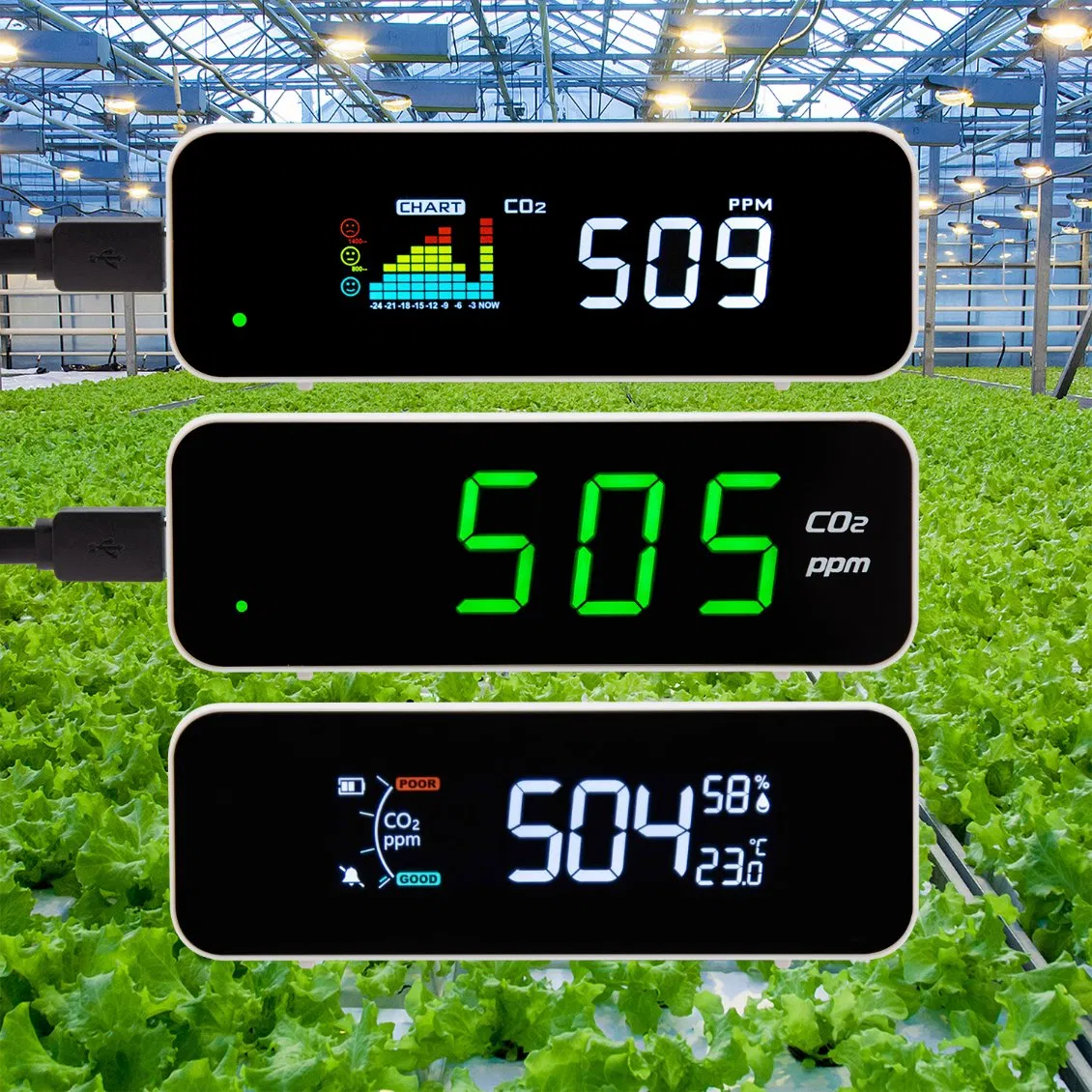

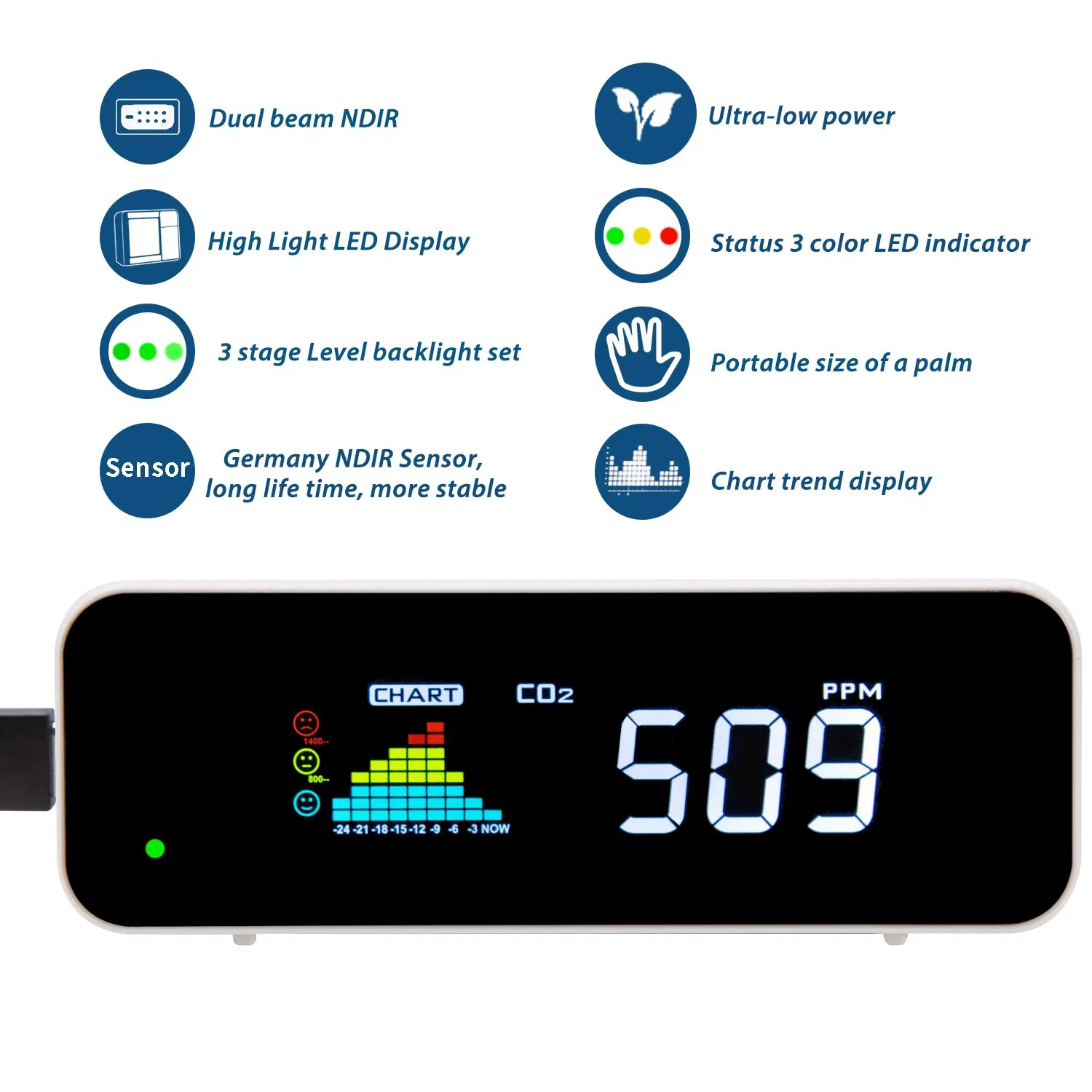

With built-in NDIR technology to improve long term stability, AKn16 is a smart desktop mini CO2 monitor, designed to accurately track air quality within CO2, temperature and humidity. The portable CO2 detector size of a palm is easy to carry and can detect the air quality in schools, office buildings, hotels, hospitals, laboratories, greenhouse and anywhere that high levels of carbon dioxide are generated. With an internal recharge LI battery, AKn16 can keep work 48 hours without external power supply.
Initial Setup: When first unboxing, plug in the unit to the included Type-C USB source. The LED display will show a countdown from 15 seconds for warm-up. Once complete, the product is ready.
Three Color Indicator LED:
| Measurement | Specification |
|---|---|
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| CO2 Range | 0-5000ppm |
| CO2 Accuracy | ±50ppm or ±5% of reading |
| Display Resolution | 1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000) |
| Warm-up Time | <30 seconds |
| Temp Accuracy | ±1°F (±0.5°C) |
| Humidity Range | 0-100% RH (±5% accuracy) |
| Power Peaks | 160mA Peak, 15mA average at 5.0V |

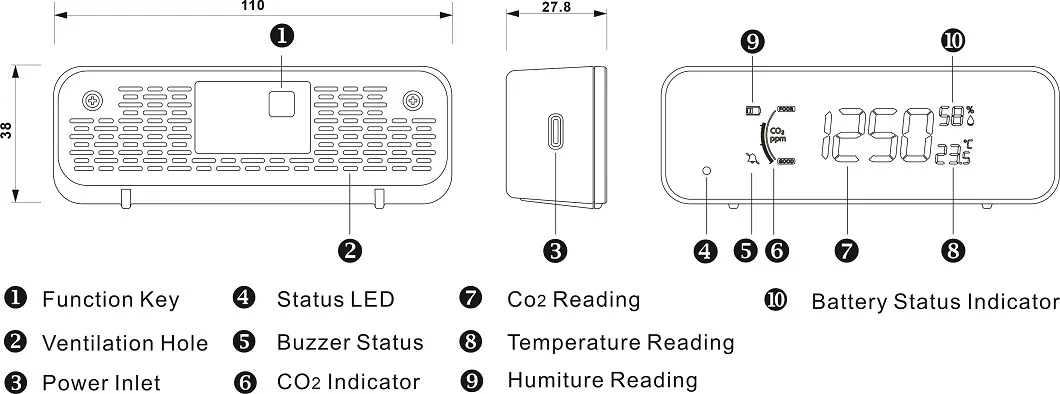

| Dimensions | 120 * 91.2 * 27mm |
| Weight | 148g (Device only) |

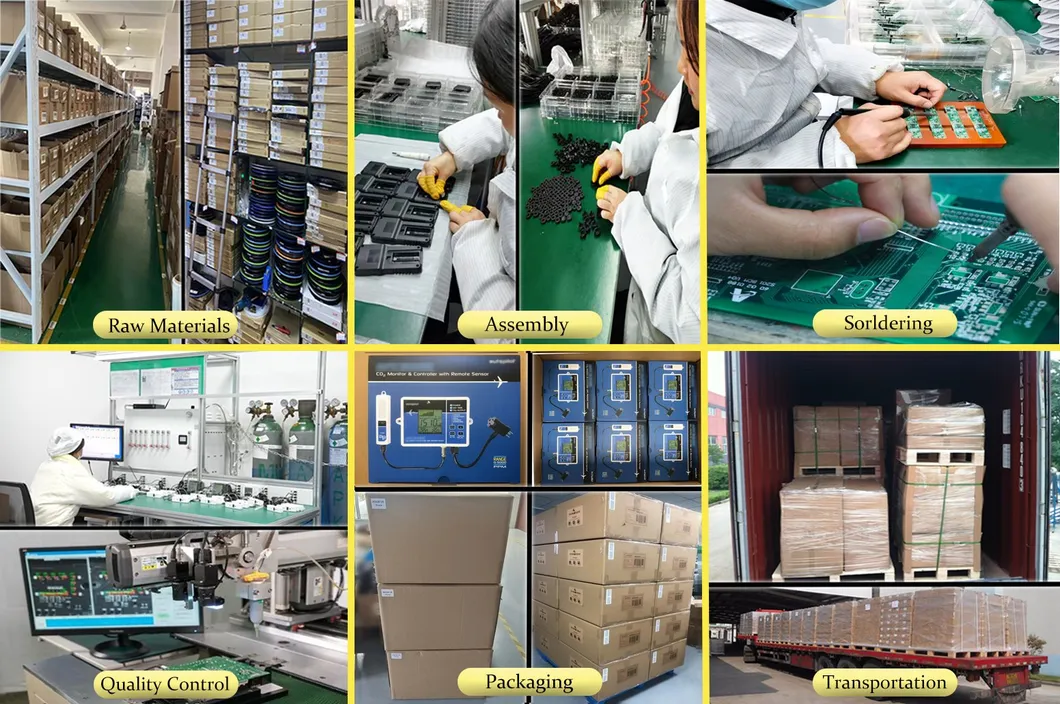

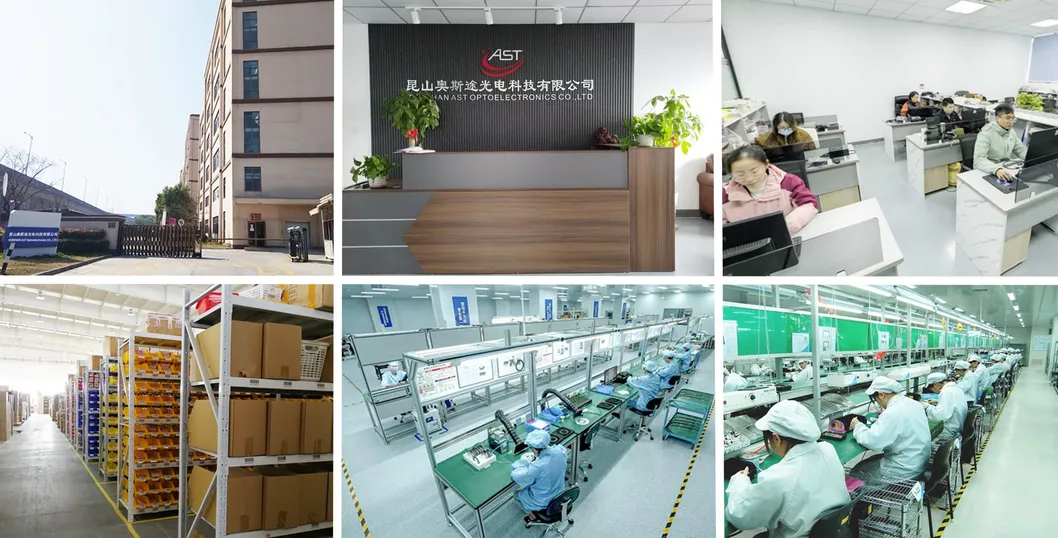

We design, develop and manufacture high quality and affordable electronic devices. As an ISO 9001 certified ODM/OEM provider, we cooperate with world-renowned brands globally, including the United States, Germany, the United Kingdom, and many more. Our team specializes in NDIR gas measurement with over 15 years of professional engineering development experience.

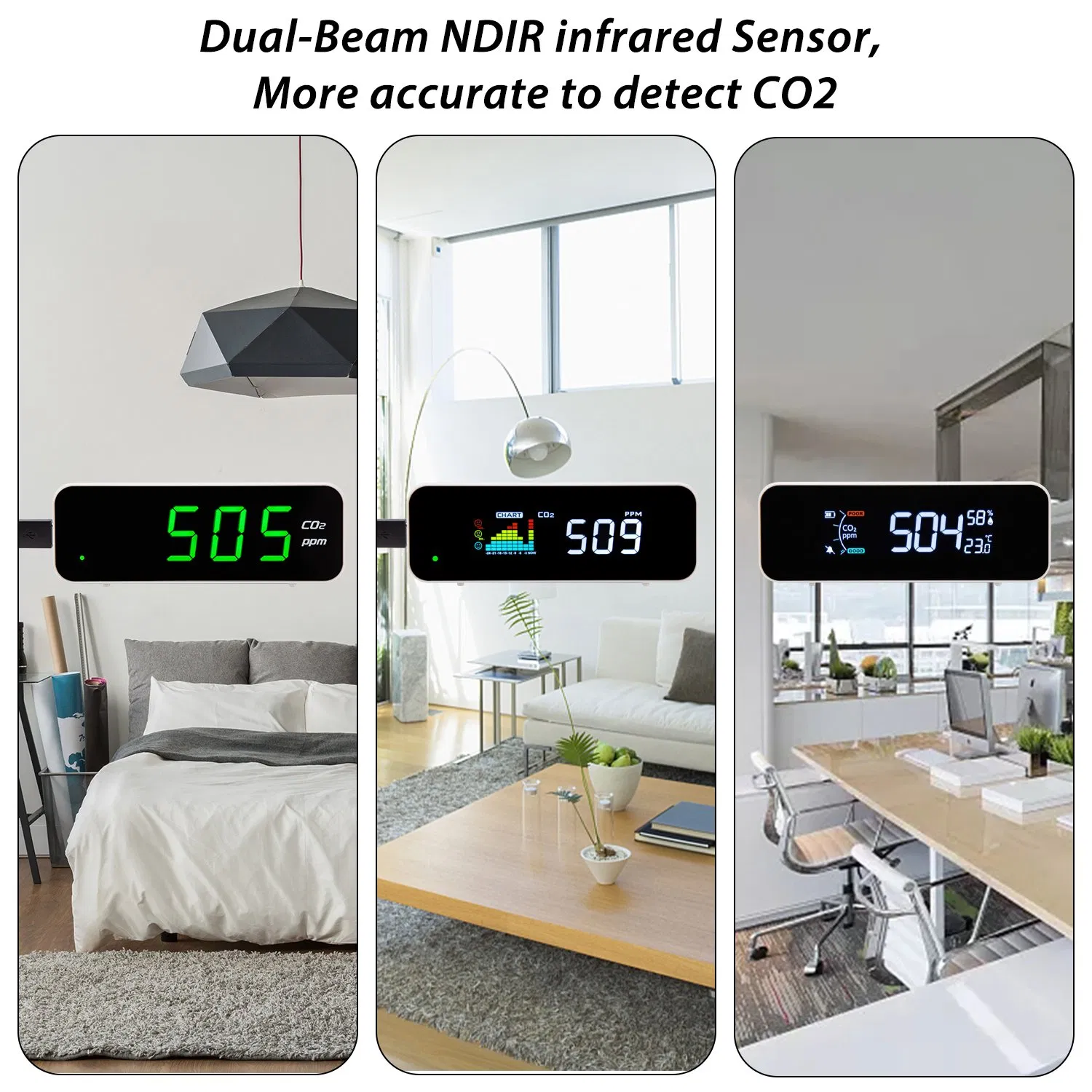

The device uses Non-Dispersive Infrared (NDIR) technology, which provides superior long-term stability and accuracy compared to standard sensors.
The internal 1000mA rechargeable lithium battery can operate for up to 48 hours without an external power supply, as tested in laboratory conditions.
The color bar provides a quick visual cue of air quality: Green indicates safe levels (<800ppm), Yellow indicates moderate levels (800-1200ppm), and Red indicates high CO2 concentration (>1200ppm).
Yes, the device features an adjustable three-stage backlight function that can be toggled using the main function key.
The device monitors CO2 from 0 to 5000ppm, temperatures from 32°F to 122°F (0°C to 50°C), and relative humidity from 0% to 100%.
No, the device features a quick initial warm-up countdown of only 15 seconds before it begins displaying real-time air quality data.
