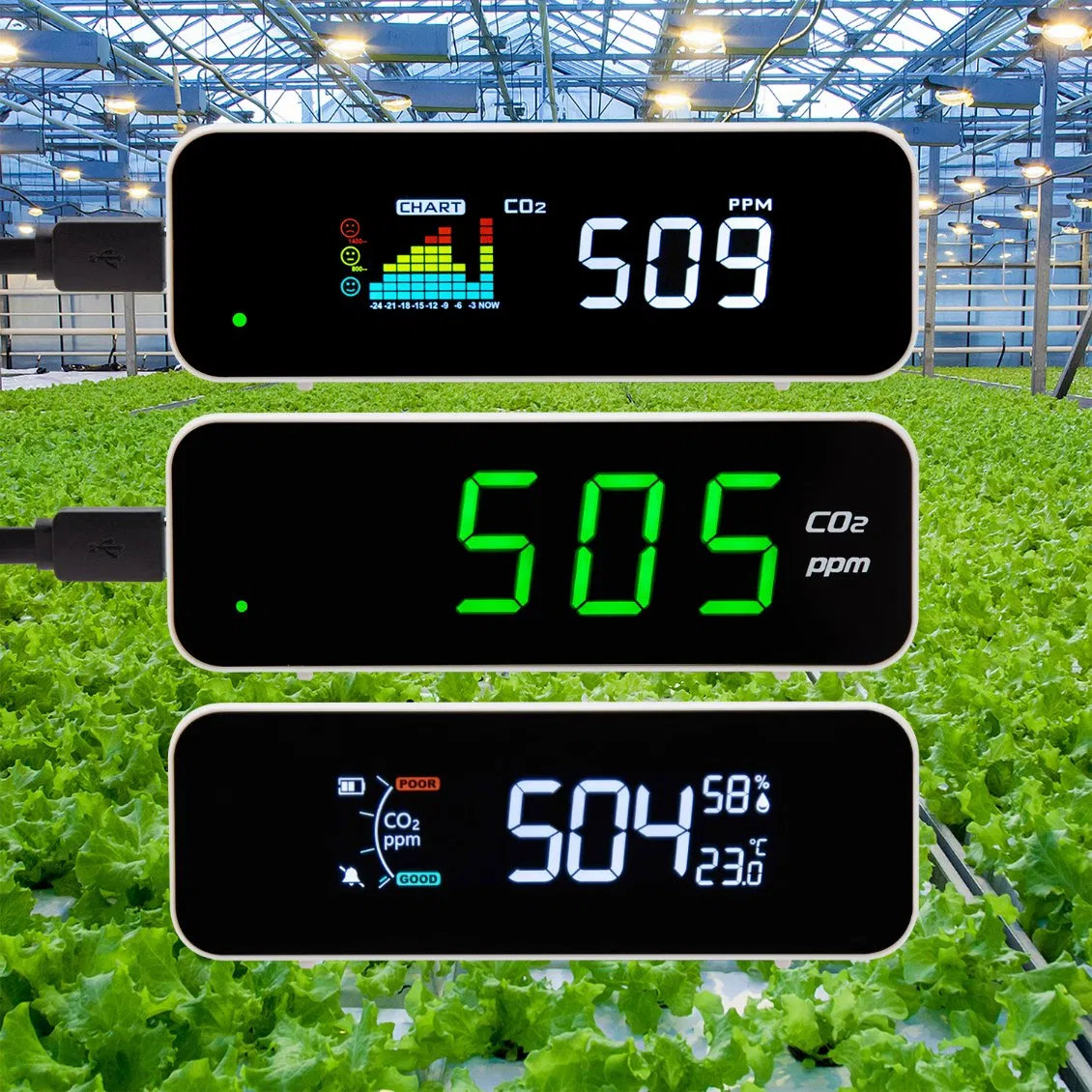

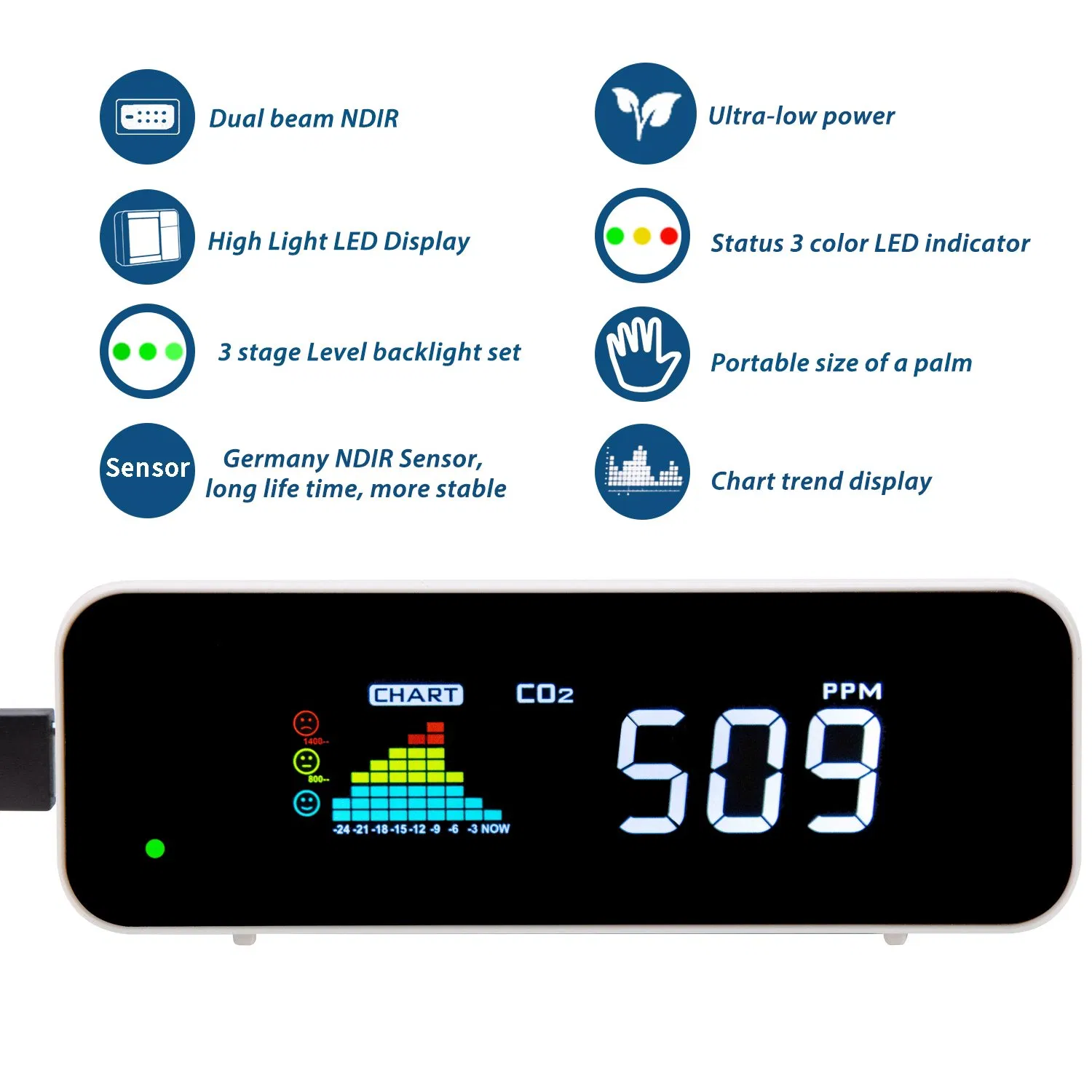

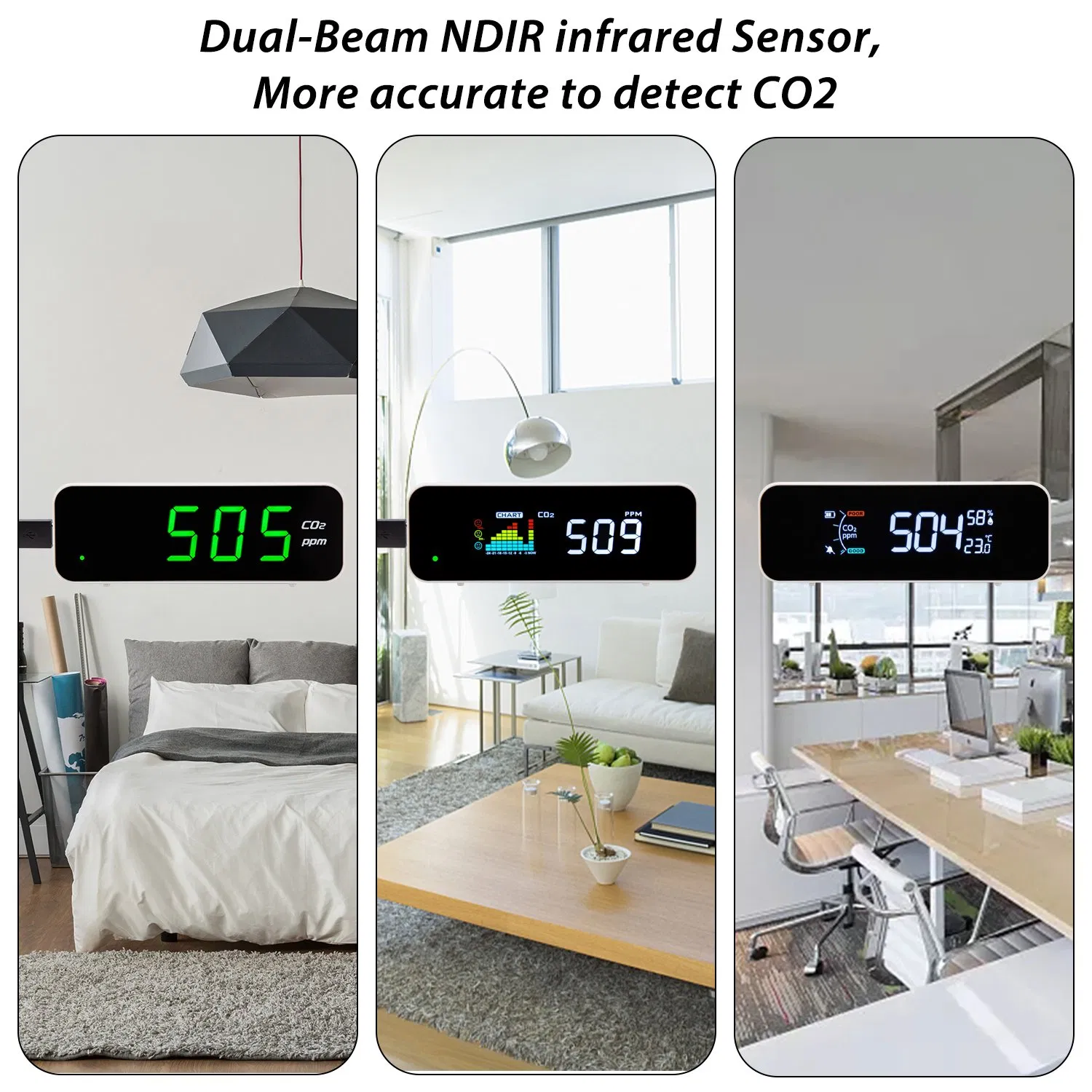

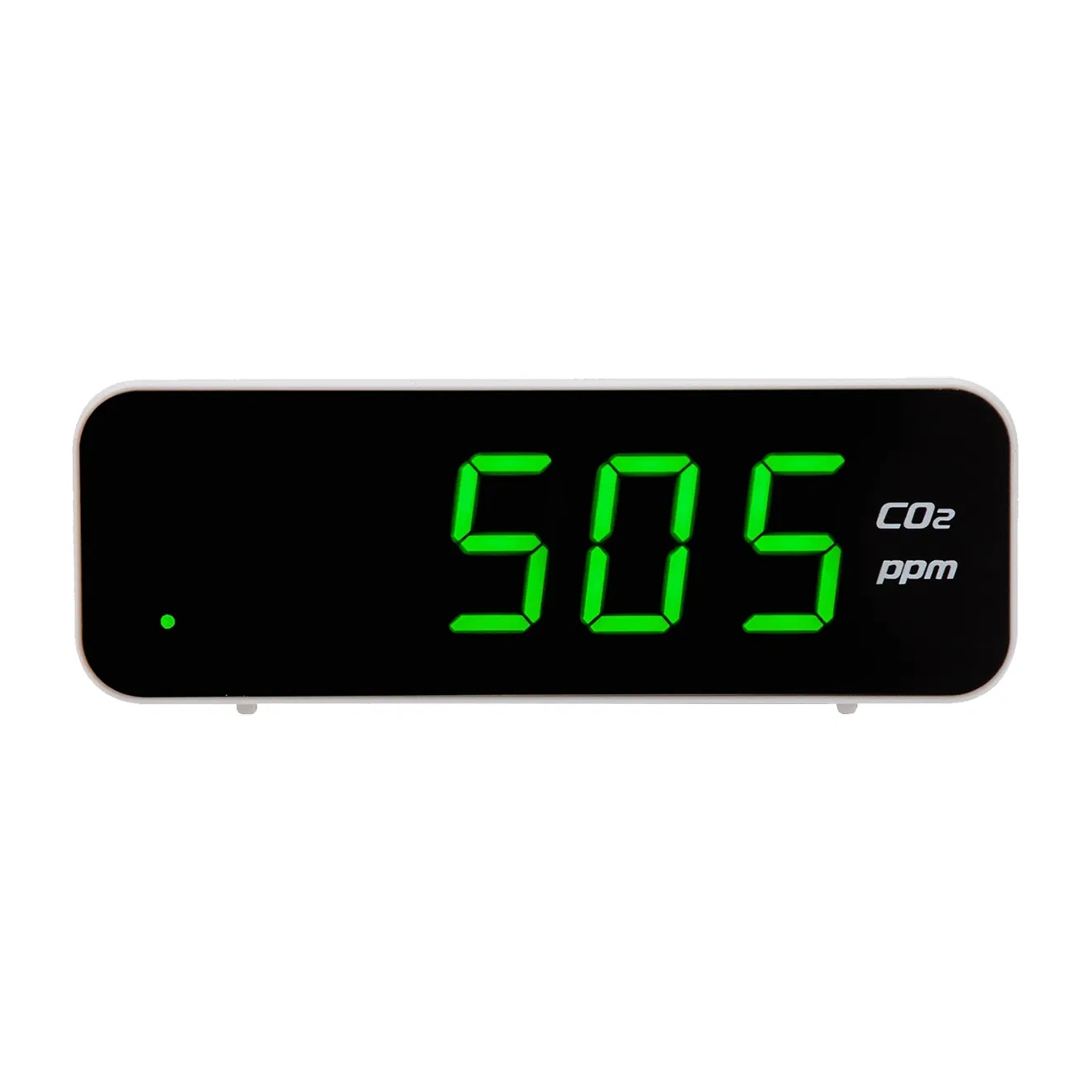

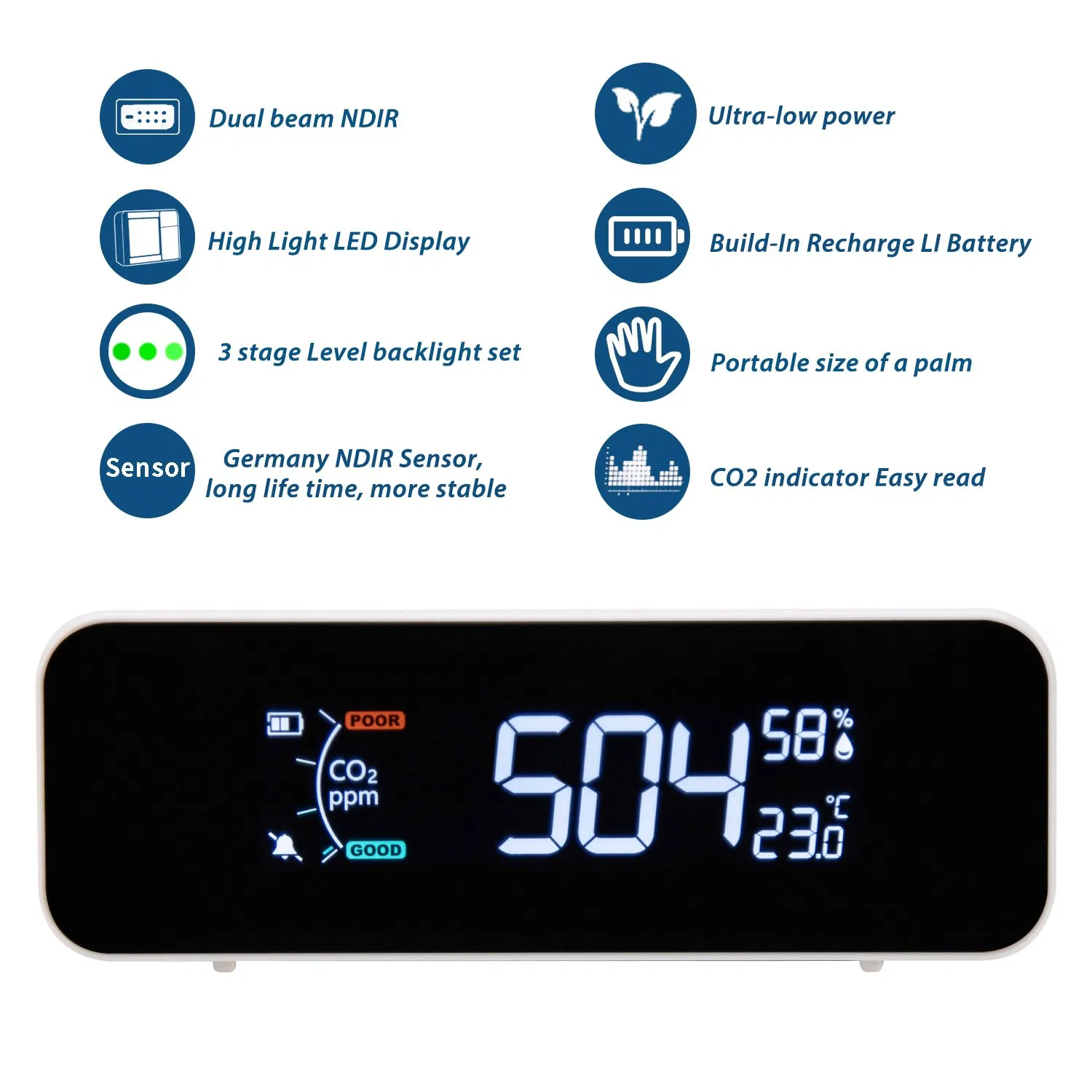

With built-in Dual Beam NDIR technology to improve long-term stability, the AGn10 is a smart desktop mini CO2 monitor designed to accurately track air quality via carbon dioxide levels and temperature. Its portable, palm-sized design makes it ideal for schools, office buildings, hotels, hospitals, and laboratories.

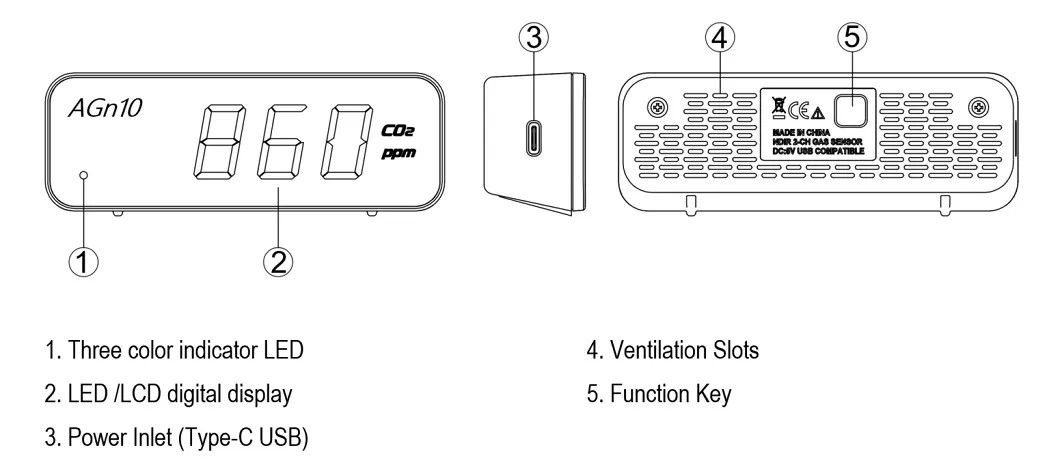

Initial Setup: Simply plug the unit into a Type-C USB power source. The LCD will display a 15-second countdown for warm-up. Once complete, the device is ready for real-time monitoring.

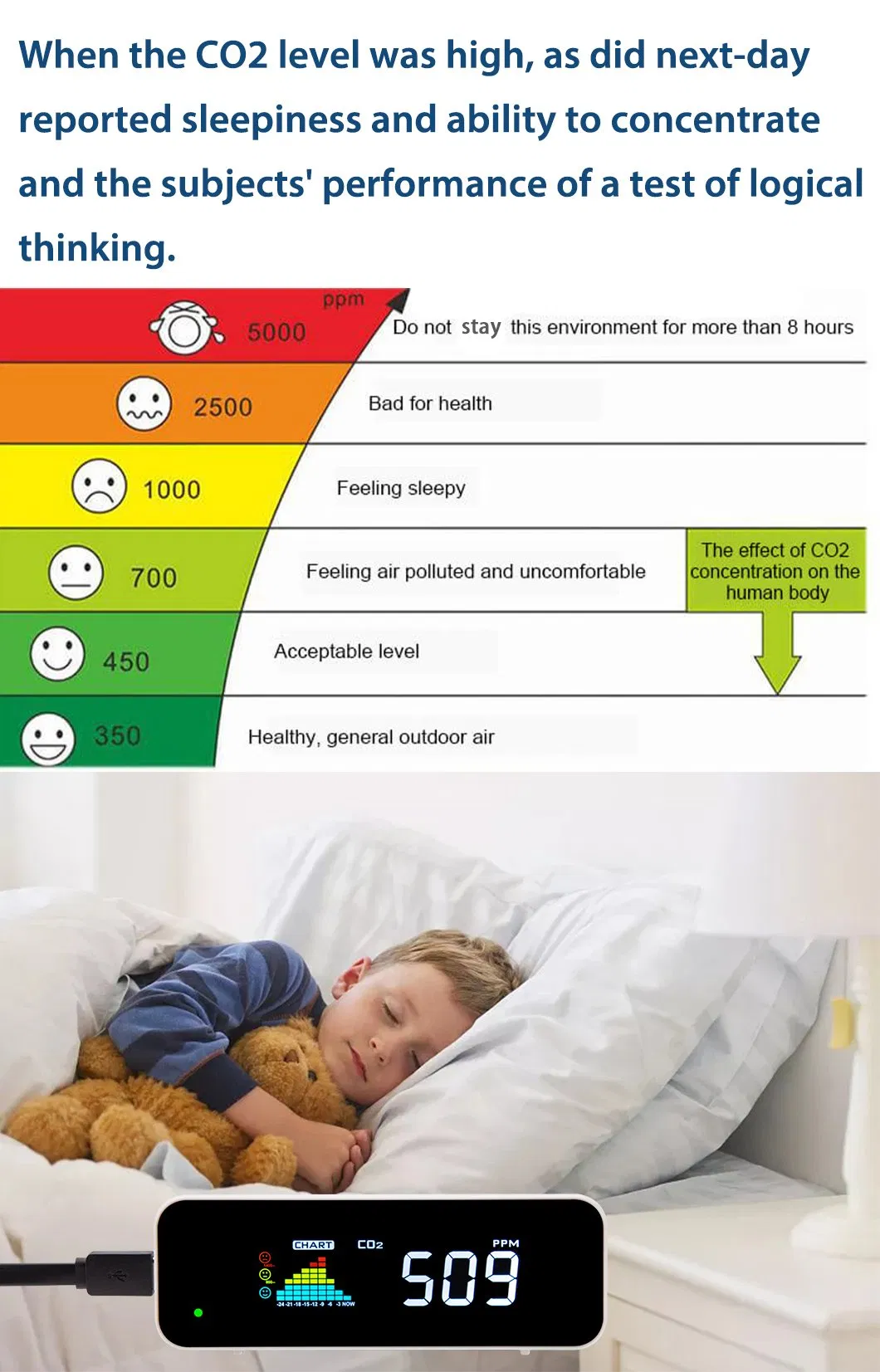

Indicator Levels:
• Green: < 800ppm (Excellent)
• Yellow: 800 - 1200ppm (Moderate)
• Red: > 1200ppm (Poor)
| Measurement | Specification |
|---|---|
| Operating Temp | 32°F to 122°F (0°C to 50°C) |
| Storage Temp | -4°F to 140°F (-20°C to 60°C) |
| CO2 Accuracy (0-3000ppm) | ±50ppm or ±5% of reading |
| CO2 Accuracy (>3000ppm) | ±7% |
| Measurement Range | 0-5000ppm |
| Response Time | < 2 mins (63% change) |
| Temp Accuracy | ±1°F (±0.5°C) |
| Power Requirements | 160mA Peak, 15mA average at 5.0V |

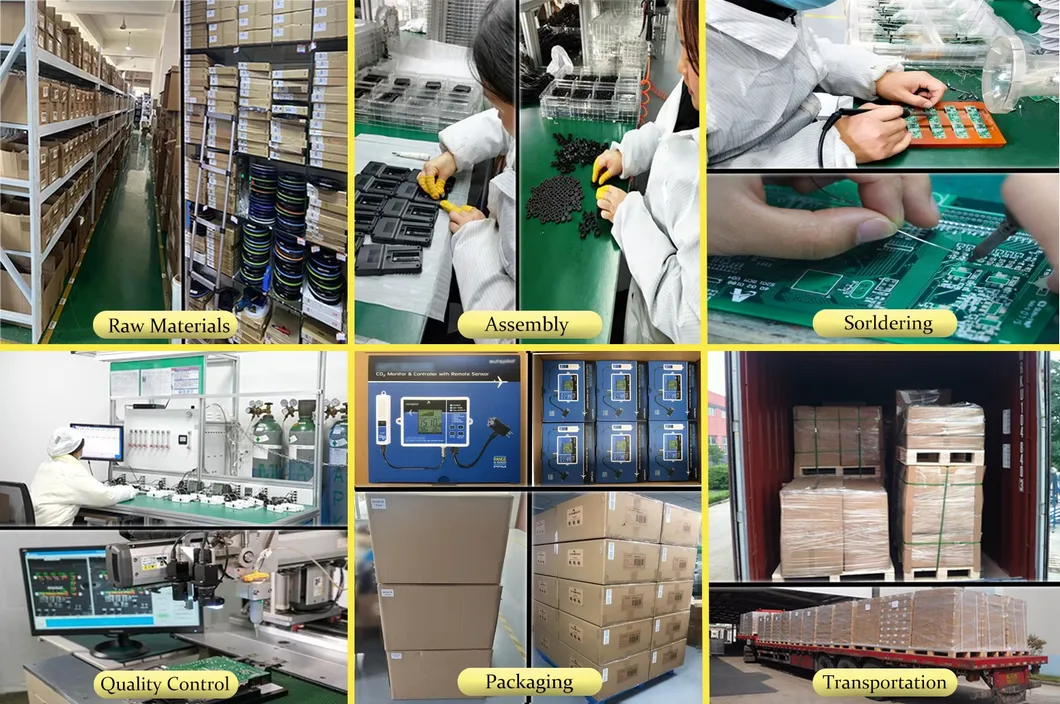

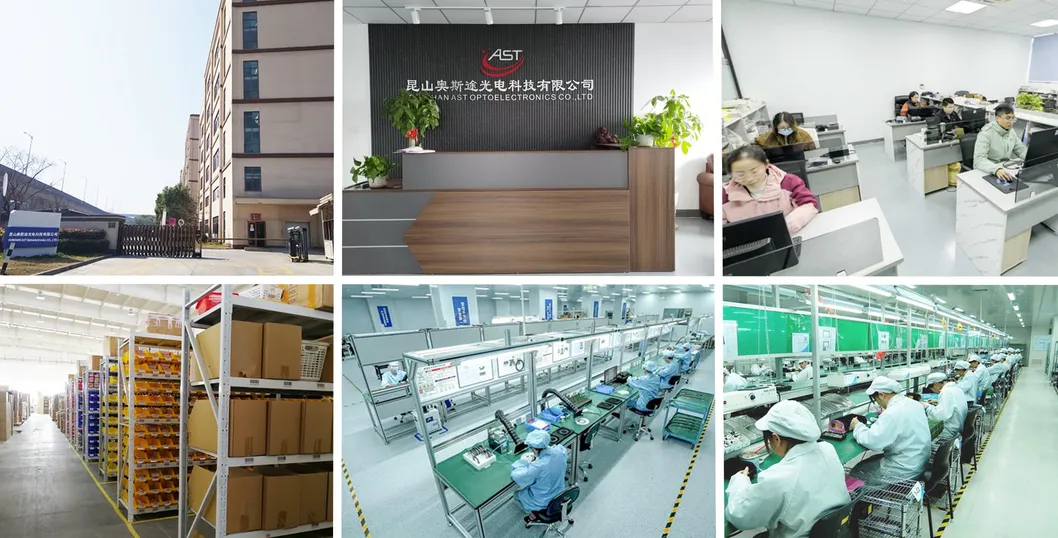

With 15 years of experience in NDIR gas measurement, our engineering team is committed to the highest levels of quality and accuracy. We operate an ISO 9001 certified environment, providing systematic solutions and high-recognition products globally across the USA, Europe, and Asia.
