Power Supply
Electric-Powered
Chamber Dimensions
2050X900X1100 mm
External Dimensions
2350×1400×1350 mm
Experience Time
2-4 Minute
Apparent Temp
-80℃ to -140℃
Language
English (Multi-Language)
| Specifications |

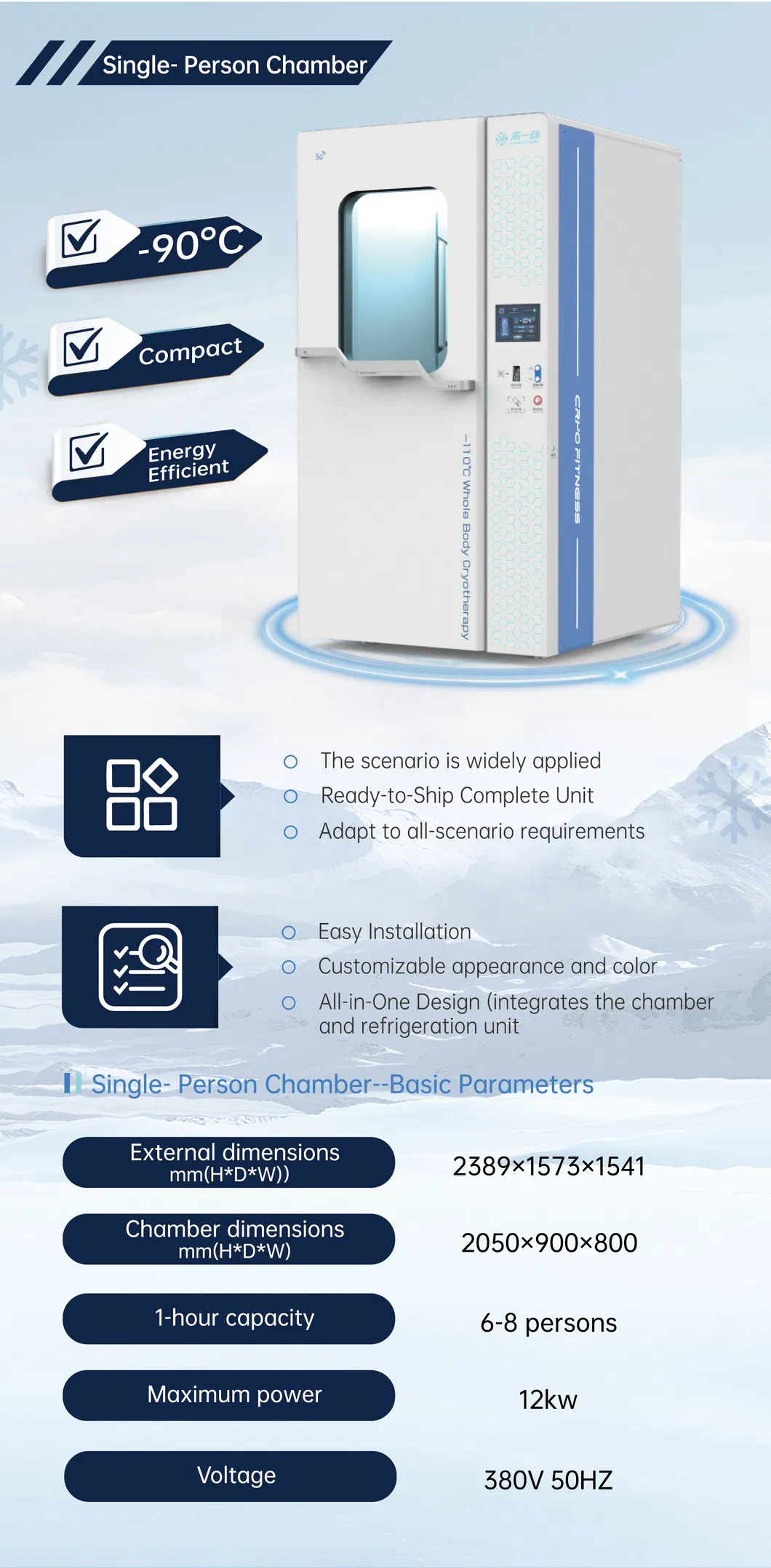

Single-person Chamber |

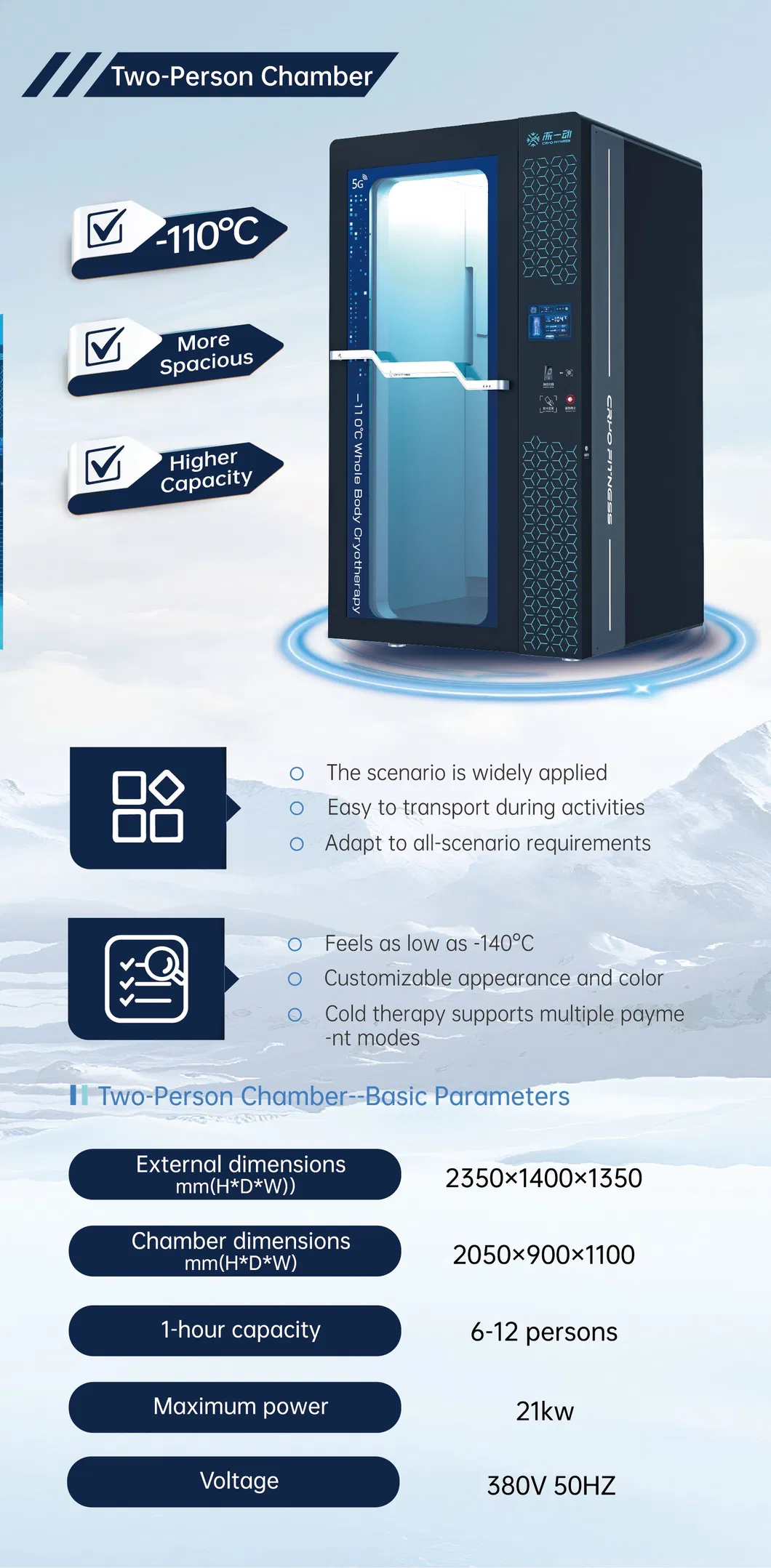

Two-Person Chamber |
Ten-person Chamber |
| Model |
CF-90-1-H |
CF-110-1-H |
CF-90-1-S |
CF-110-1-S |
CF-90-10-S |
CF-110-10-S |
| Chamber temp |
-90ºC |
-110ºC |
-90ºC |
-110ºC |
-90ºC |
-110ºC |
| Apparent temp |
-80ºC to -120ºC |
-80ºC to -140ºC |
-80ºC to -120ºC |
-80ºC to -140ºC |
-80ºC to -120ºC |
-80ºC to -140ºC |
| Maximum power |
12kw |
21kw |
12kw |
21kw |
28kw |
38kw |
| User Capacity |
Single person |
1-2 persons |
8-12 persons |
| 10-hour capacity |
30 persons |
60-80 persons |
400 persons |

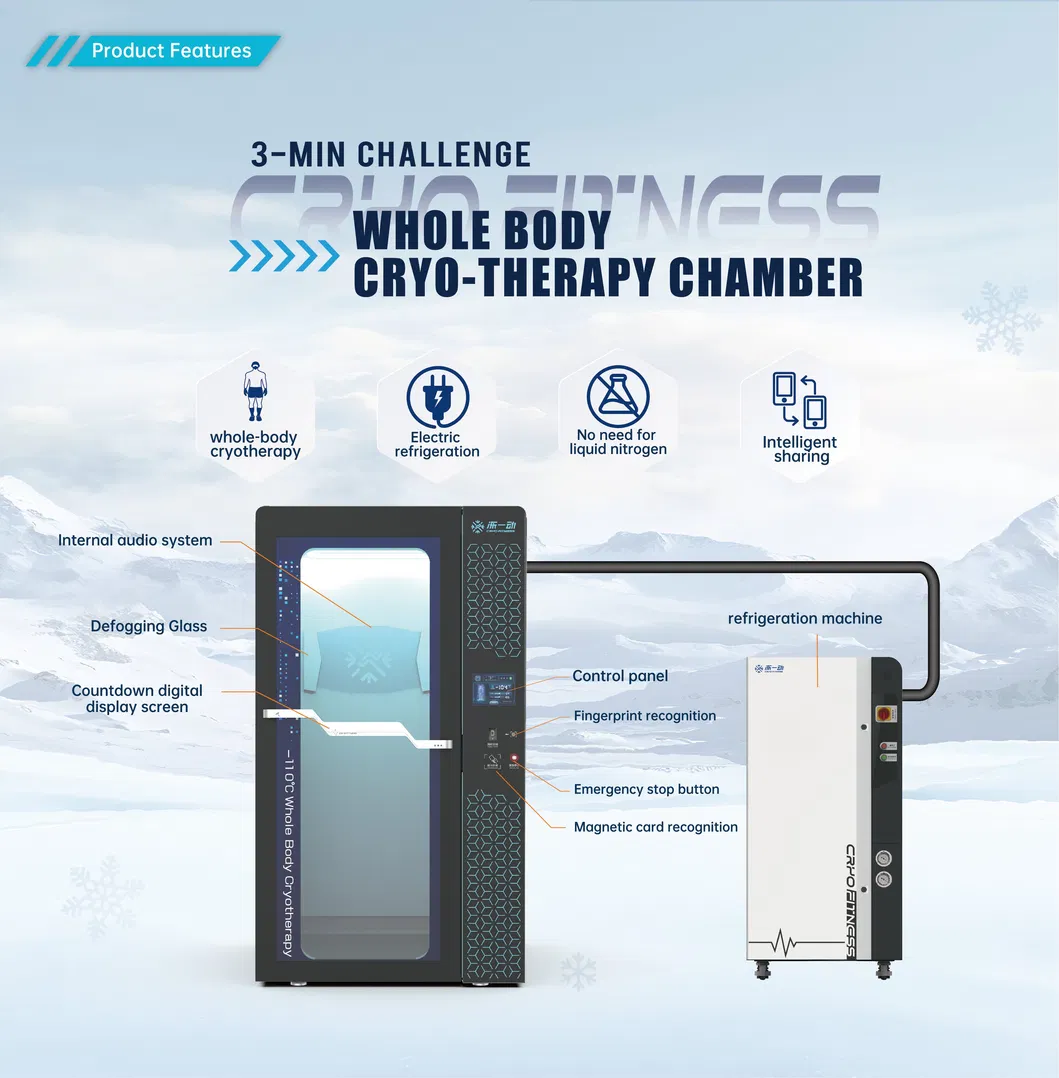

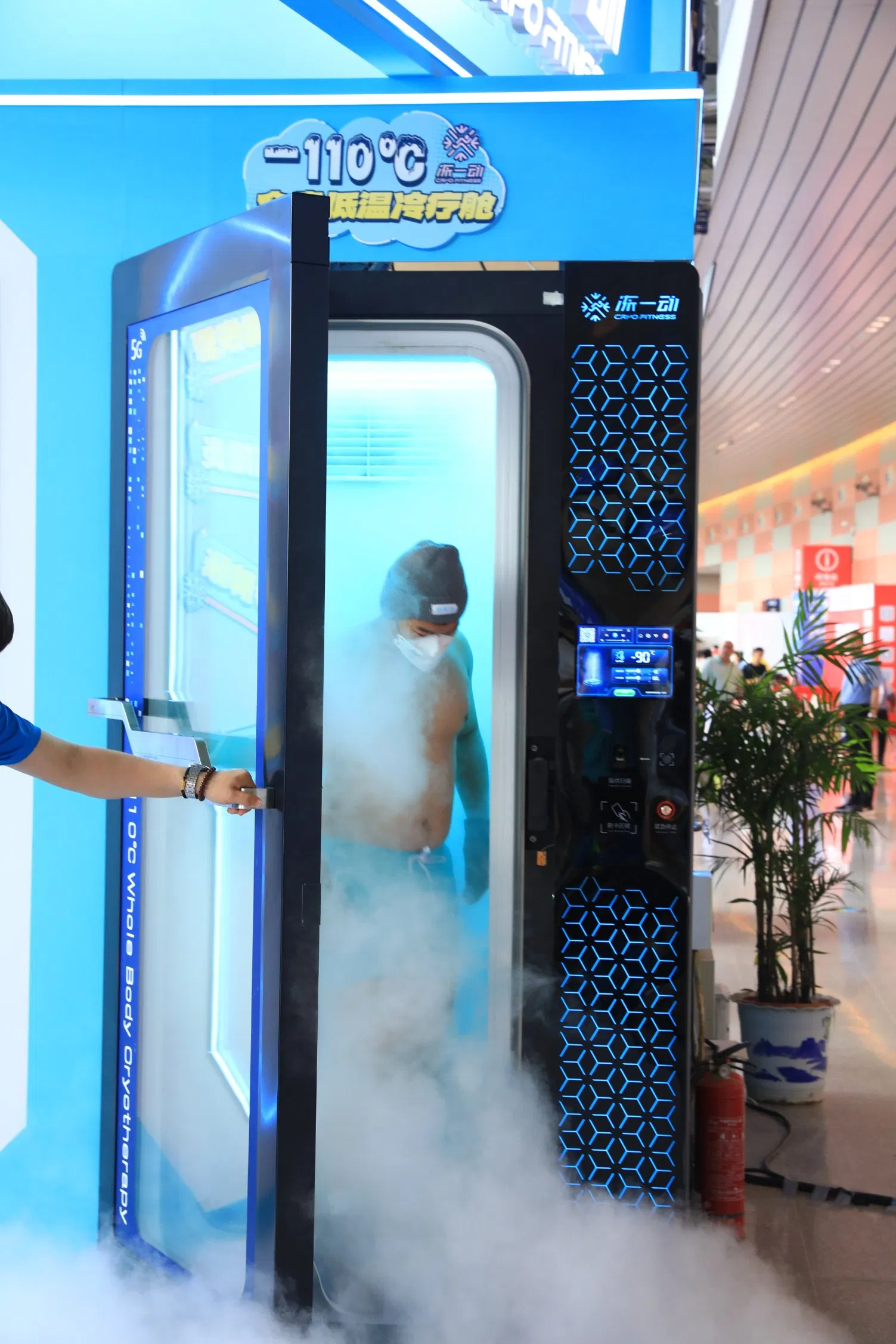

These electrical cryo chambers reduce the temperature without nitrogen. Through the use of cooling aggregates and cooled ambient air, they can reach temperatures down to -110 degrees Celsius. Our technology is built on over 20 years of specialized expertise in refrigeration.
?
Frequently Asked Questions
Does the cryotherapy chamber require liquid nitrogen?
No, these are purely electrical cryo chambers. They use cooling aggregates to reduce temperature using ambient air, making them safer and easier to maintain.
What is the lowest temperature the chamber can reach?
Depending on the specific model, the chambers can achieve apparent temperatures ranging from -80°C down to -140°C.
How long is a typical cryotherapy session?
The recommended experience time settings are between 2 to 4 minutes per session for optimal results.
What are the power requirements for installation?
The systems typically require a three-phase five-wire power supply (380V 50HZ, 200V 60HZ, or 460V 60HZ) with power consumption between 12kw and 38kw depending on the model.
Can the chamber be customized for my facility?
Yes, we highly welcome OEM and ODM orders. The color, language settings, and certain hardware configurations like 5G connectivity or fingerprint unlocking can be customized.
How many people can use the chamber at once?
We offer different models designed for single-person use, 1-2 persons, and large multi-person chambers that can accommodate 8-12 people simultaneously.
