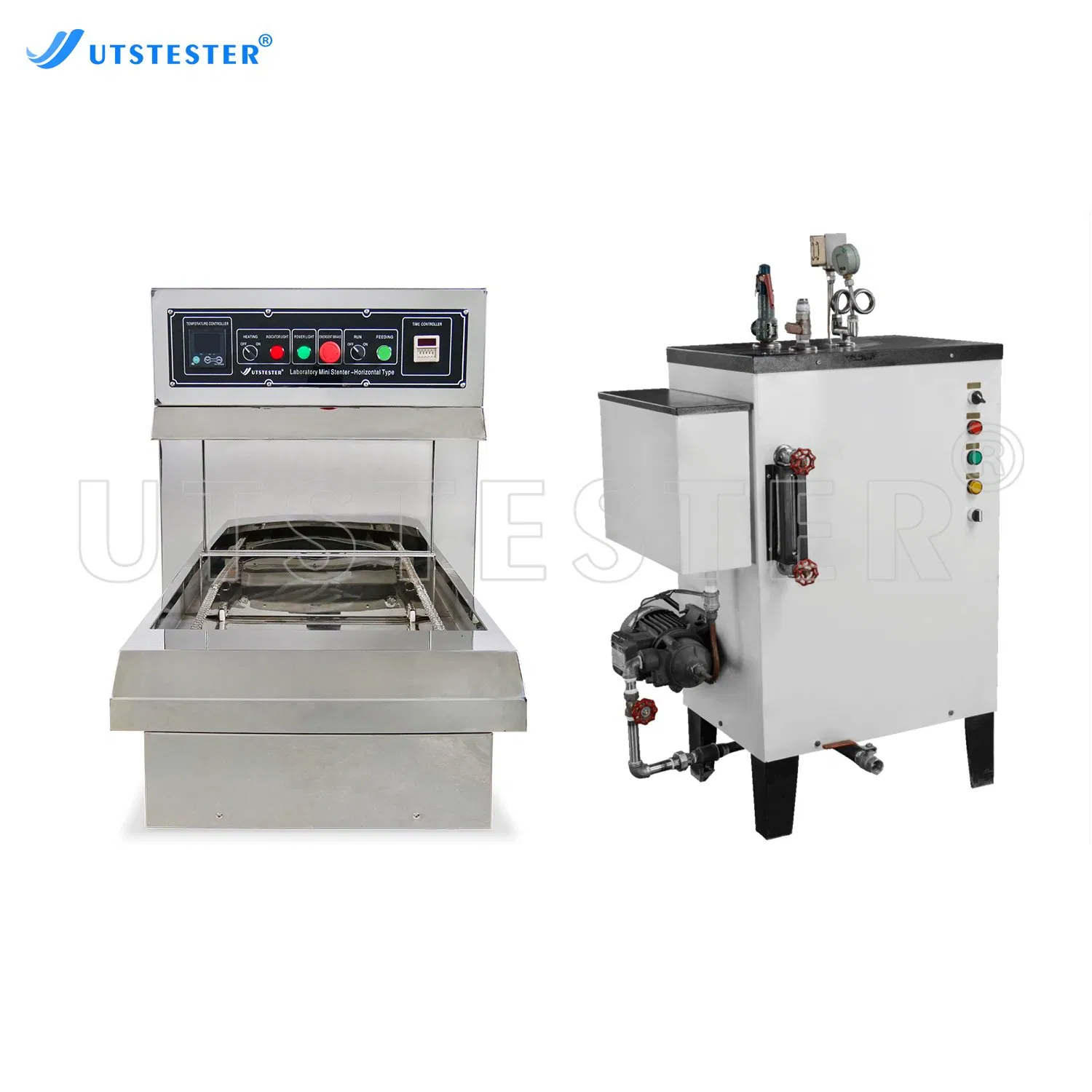

The Laboratory Mini Stenter with steamer is specifically designed for the garment, dyeing, finishing, and chemical industries. This advanced model includes a specialized steaming function, enhancing its versatility for various textile tests.
It is primarily used for conducting tests in drying, stereotypia, resin treatment baking, pad dyeing baking, and thermal fixation. These processes allow operators to obtain accurate resin treatment recipes, evaluate color changes in dyeing and finishing, and verify medicament test results. It is also an ideal tool for producing hand-feel sample plates with precise color and texture.

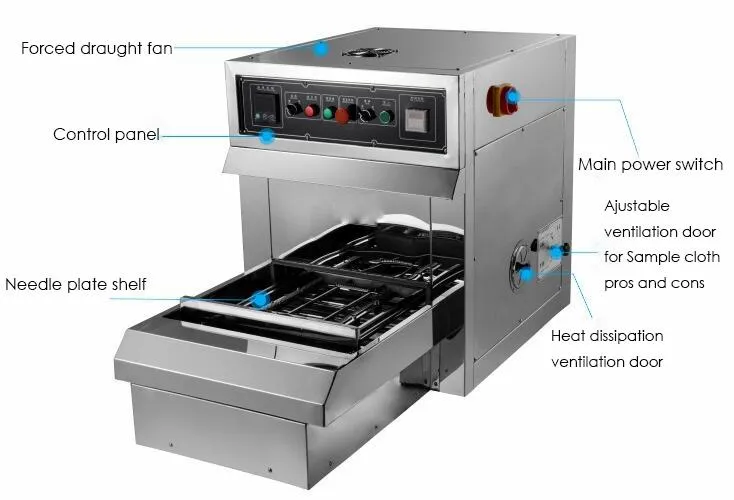

Sample preparation (Needle plate shelf) → Automatic feedstock → Automatic count → Auto return of material and finish test.
| Parameter | Specifications |
|---|---|
| Model | D018A-1 |
| Sample Size | 350 x 400mm (Effective: 300 x 350mm) |
| Temperature Range | 20-250ºC |
| Heat Preservation Control | 10s to 360s (Preset with auto-stop & alarm) |
| Display Mode | LCD Digital Display |
| Testing Time Range | 1-999s |
| Power Supply | 3∮AC 380V 50/60HZ 6KW |
| Dimensions | 1360 x 730 x 840 mm (L x W x H) |
| Weight | 120 kg |
