| Model NO. | MIC100 | Type | Thermal Conductivity Gas Analyzer |
| Certification | FCC, CE, RoHS, ATEX | Detection Gas | Combustible Gas, Toxic Gas, VOC |
| Accuracy | ±3%Fs | Response Time | T90<30s (Combustible Gas) |
| Working Voltage | 24VDC | Alarm Type | Multiple Alarm Mode |
| Weight | About 2.1kg | Specification | 209*160*86mm (L*W*H) |

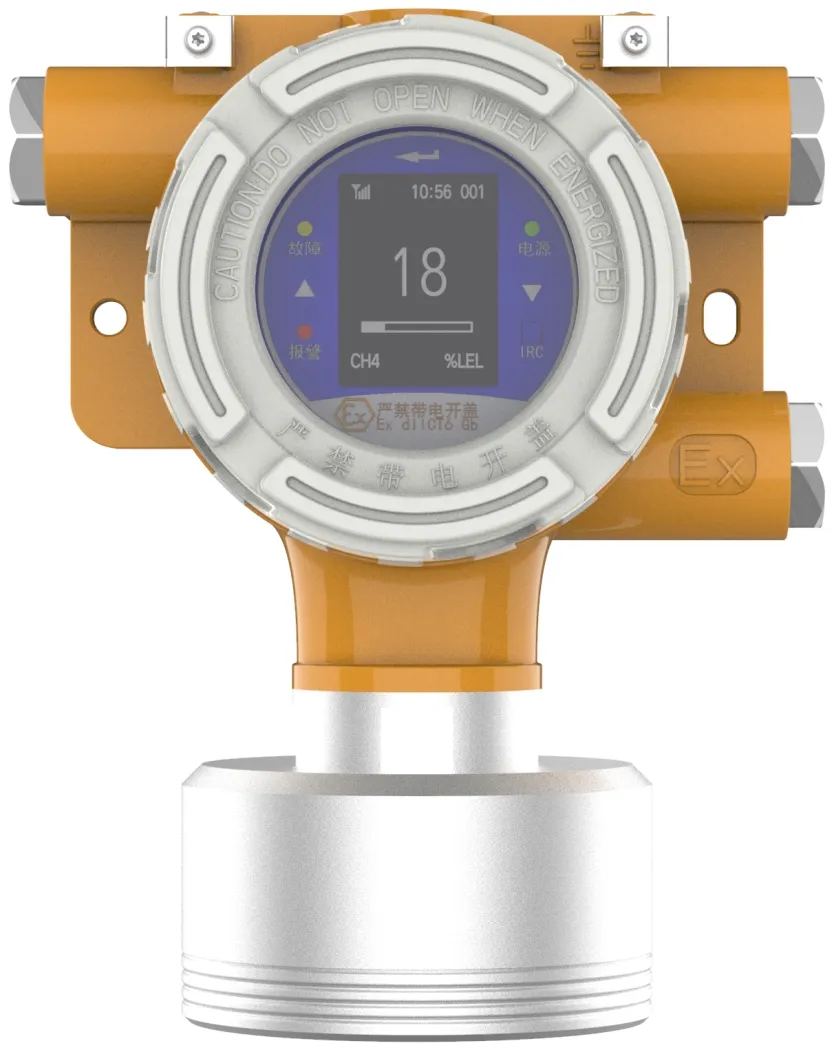

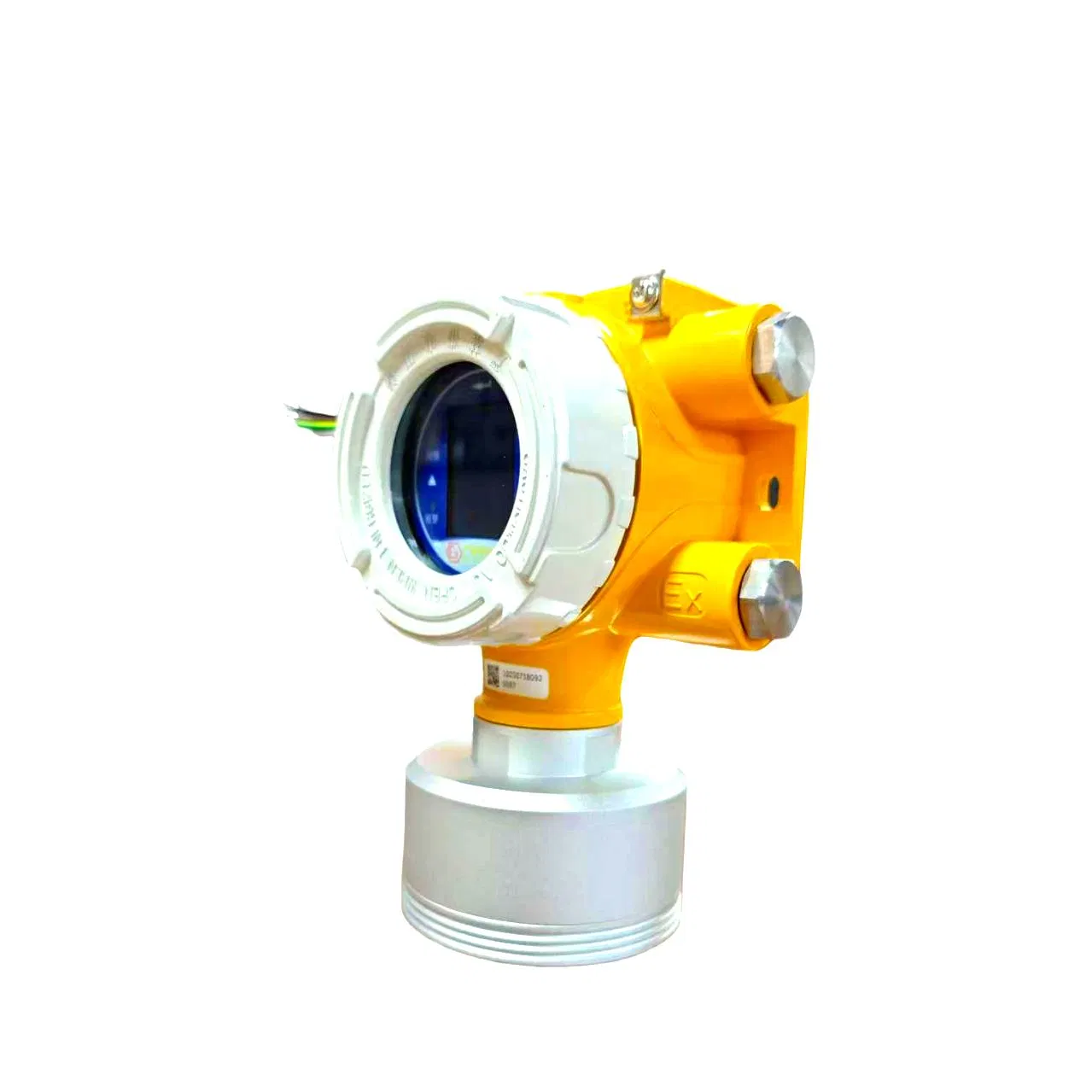

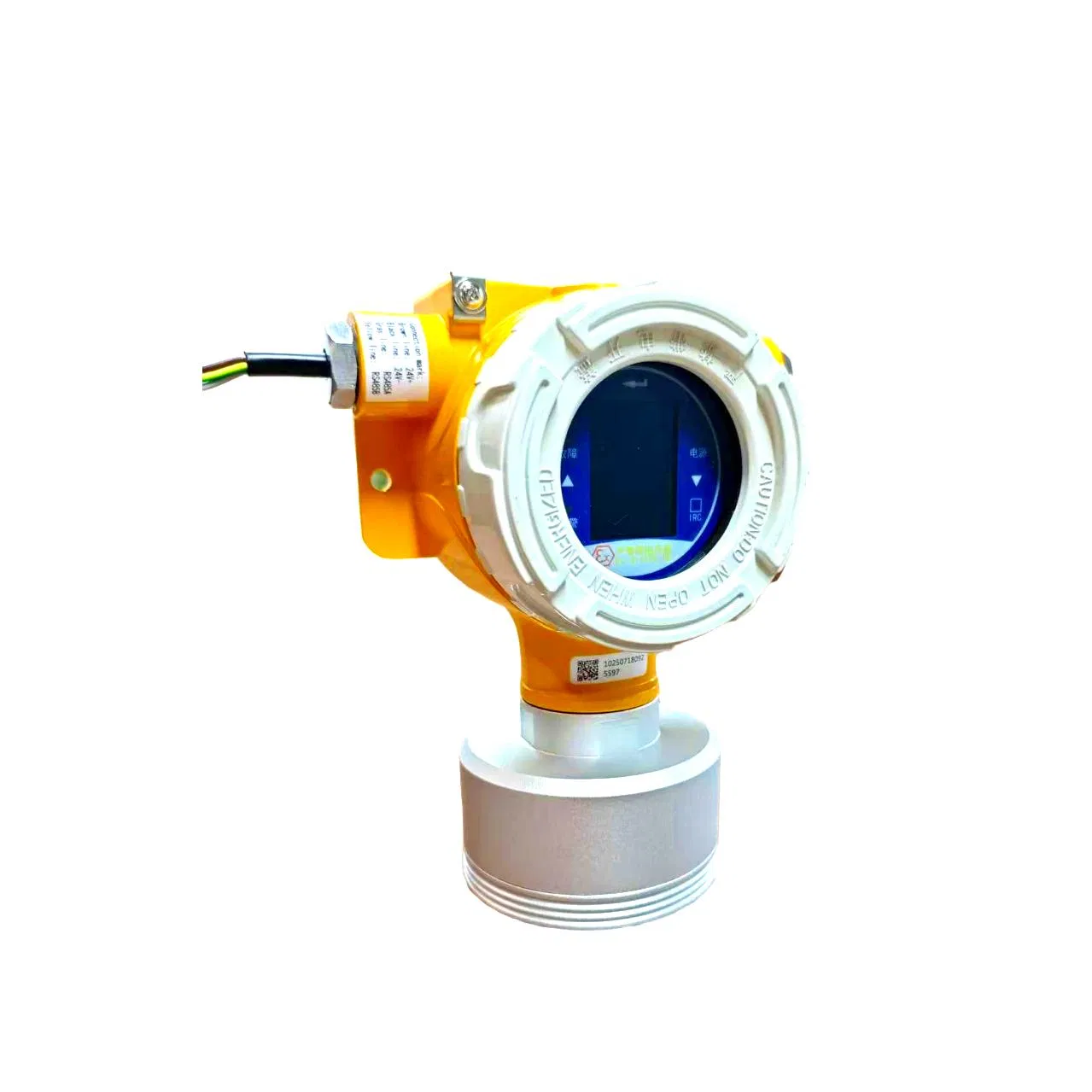

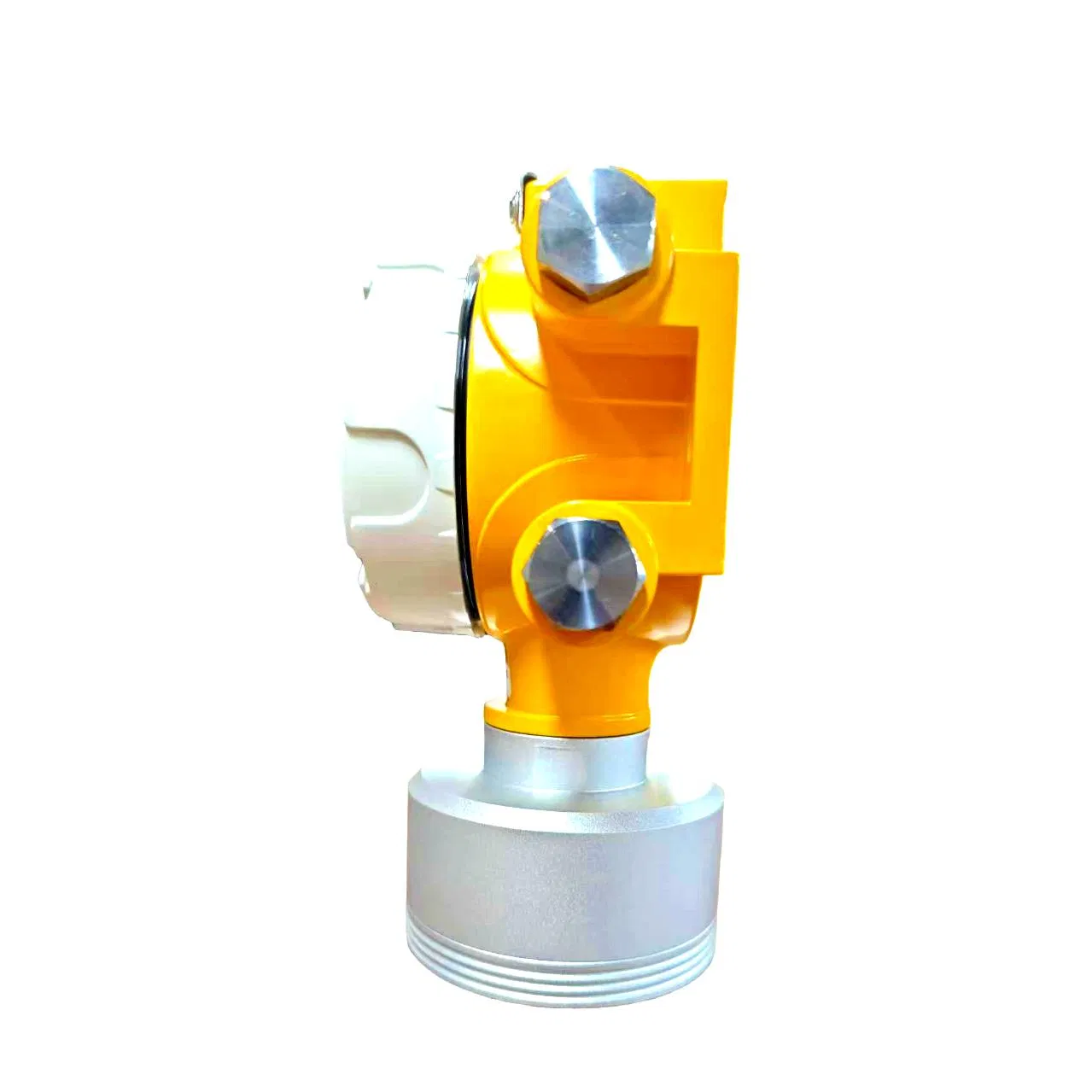

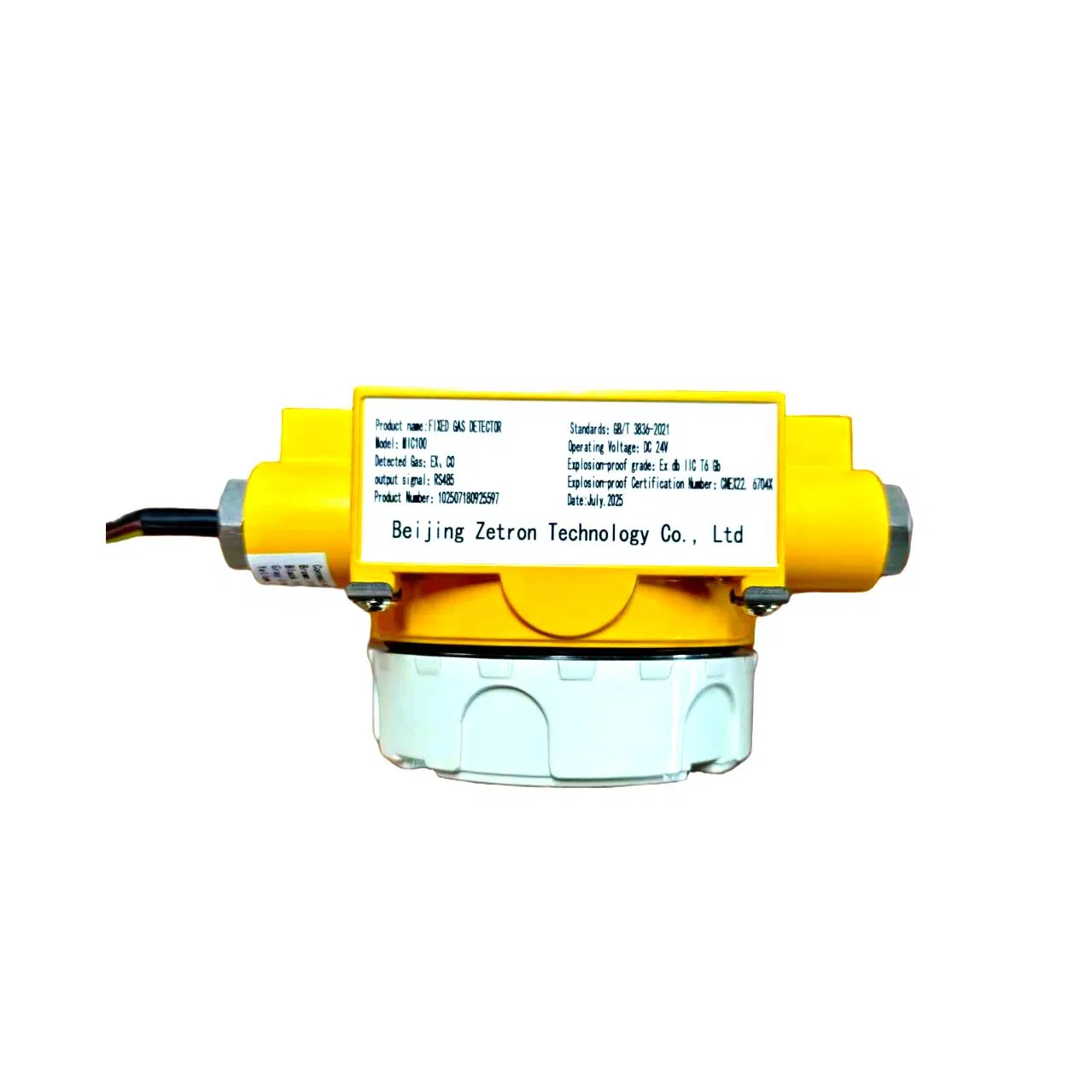

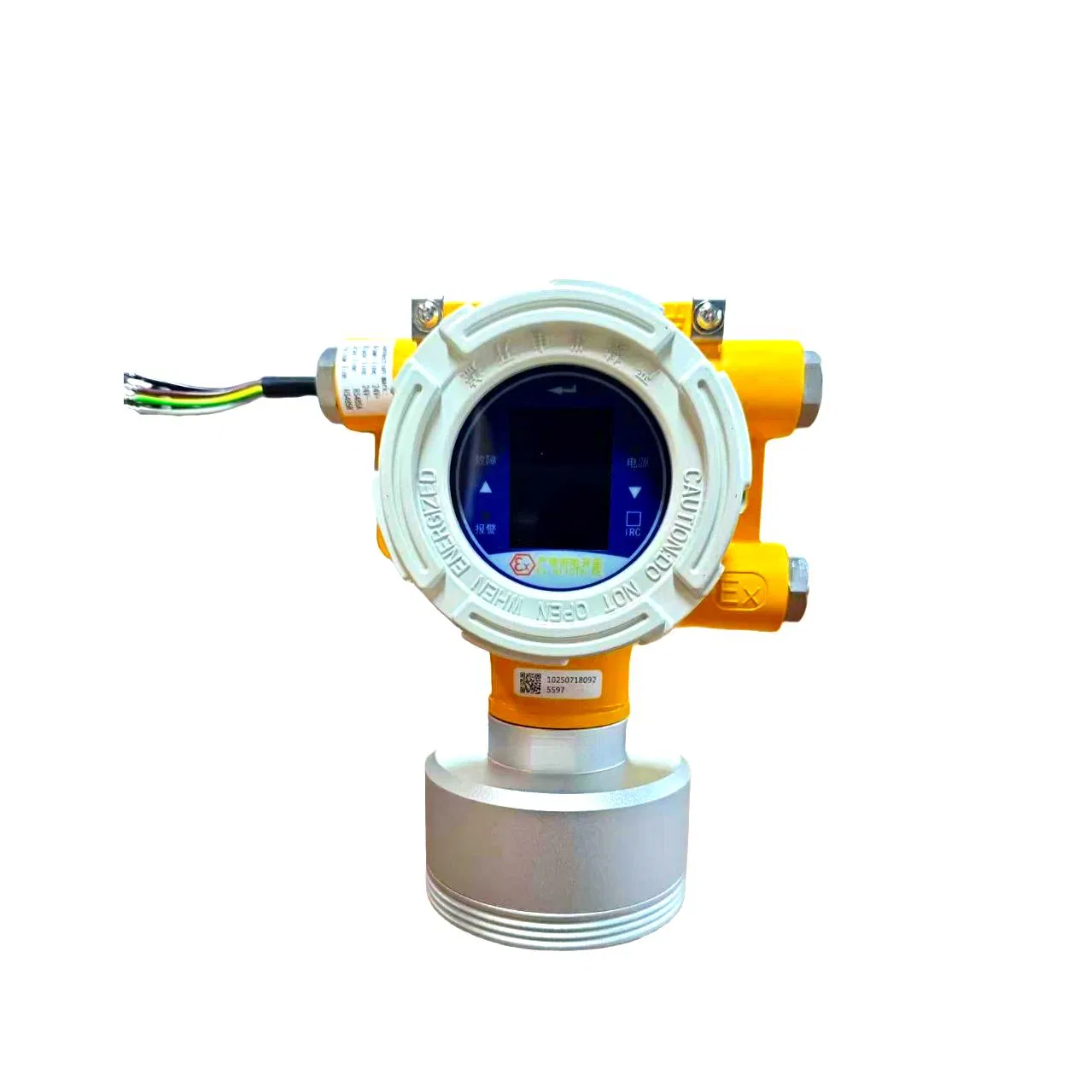

MIC100 Online Gas Detector for HVAC Applications - Advanced Monitoring for Indoor Air Quality
The MIC100 online multi gas detector supports simultaneous detection of up to four gases, including combustible gases, toxic gases, and VOCs. Featuring advanced sensor technologies such as catalytic combustion, electrochemical, NDIR, and PID, it offers intelligent modular sensors, OLED display, infrared remote control, and multi-point calibration with temperature compensation. Designed for harsh industrial conditions, it supports 4~20mA and RS485 outputs and ensures accurate, real-time monitoring with high durability.
| Parameter | Specification |
|---|---|
| Detection Principle | Catalytic combustion, electrochemical, PID, thermal conductivity, infrared NDIR |
| Accuracy / Repeatability | ±3%FS / ±2% |
| Power Supply | 24VDC (Range: 10~30VDC) |
| Power Consumption | <1.5W (toxic gas), <2.5W (combustible gas) |
| Output Signal | 3-wire 4~20mA, 4-wire RS485, and 2 sets of passive relays (24VDC 2A) |
| Housing Material | Aluminum Alloy (IP66 Protection Level) |
| Temperature Range | -20ºC~50ºC (toxic), -40ºC~70ºC (combustible) |
| Humidity / Pressure | 10~95%RH (no condensation) / 86~106Kpa |
| Implementation Standards | GB15322.1-2019, GB3836.1-2021, GB12358-2006 |

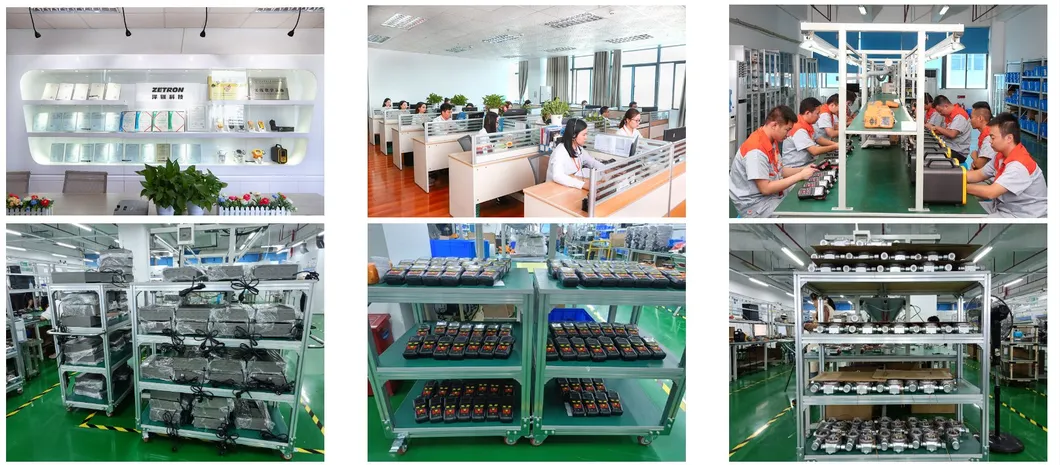

Founded in 2011, our organization specializes in the retail, import, and export of high-precision gas detection and monitoring equipment. With over 10 years of expertise, we supply a range of detectors tailored to complex industrial needs and budgets.
We serve customers across more than 20 countries, including Brazil, Germany, Japan, Singapore, and the United States, providing high-quality alternatives and original merchandise to meet rigorous safety requirements.
