| Model NO. | Modular Air Handling Unit |
| Corrosion Durability | Higher |
| Operating Voltage | 380/400 VAC |
| Noise Level | Low |
| Application Fields | Medicine / Industrial |
| Mounting | Ceiling Mount |
| Lifetime | 5~10 years |
| Certification | RoHS, UR, ISO, CE, CCC |
| Rated Air Volume | 2000-100000 M/3/H |
| Origin | China |

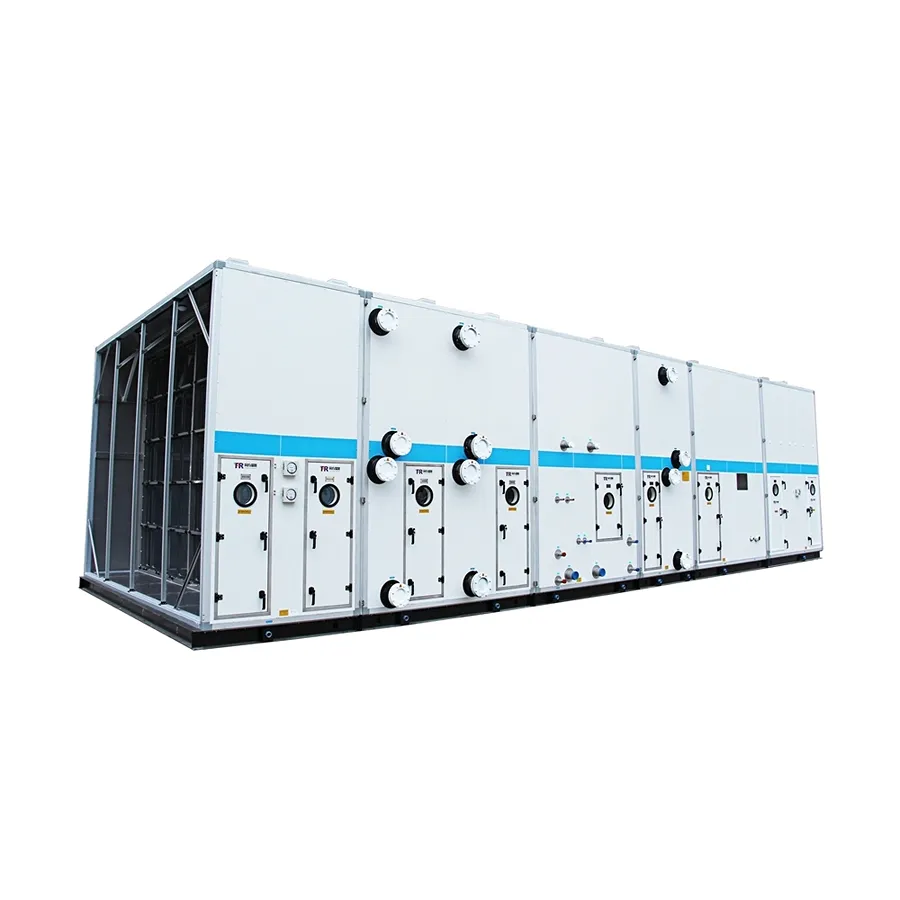

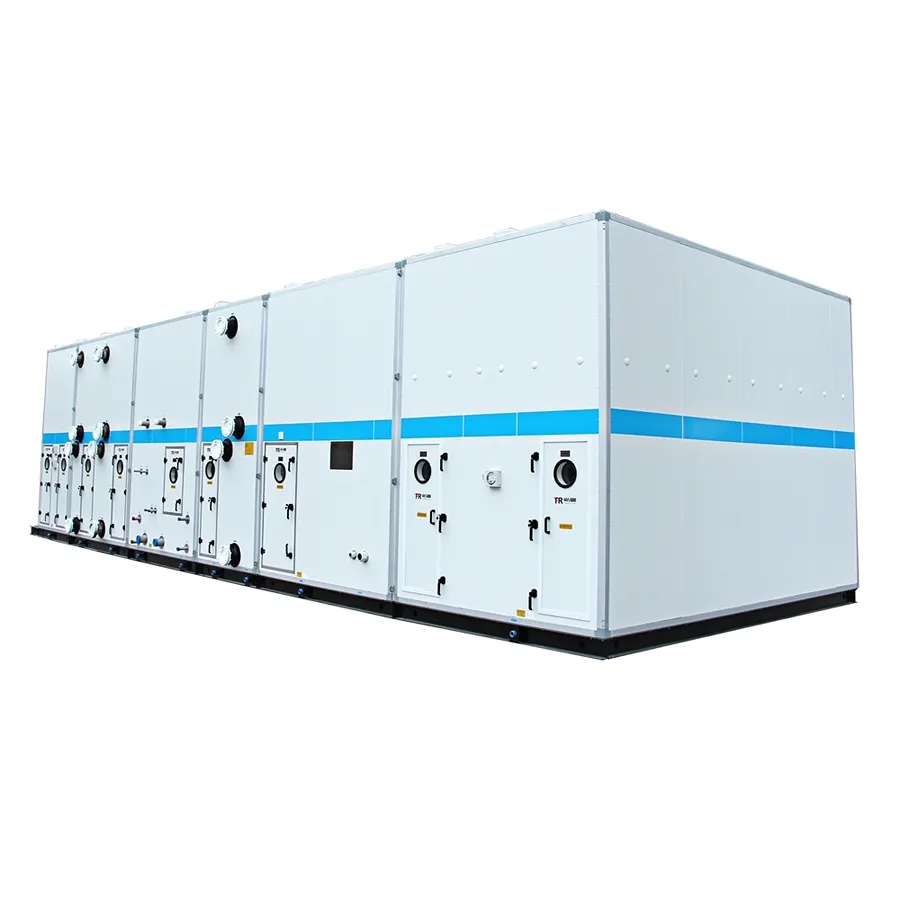

MODULAR AIR HANDLING UNIT

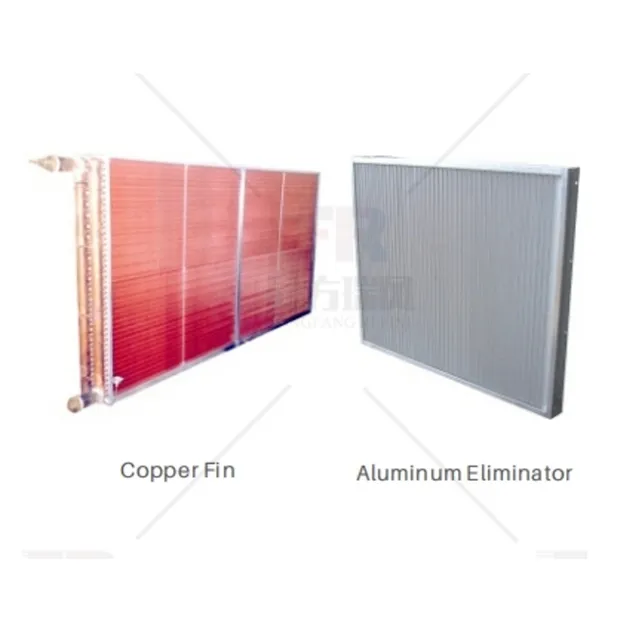

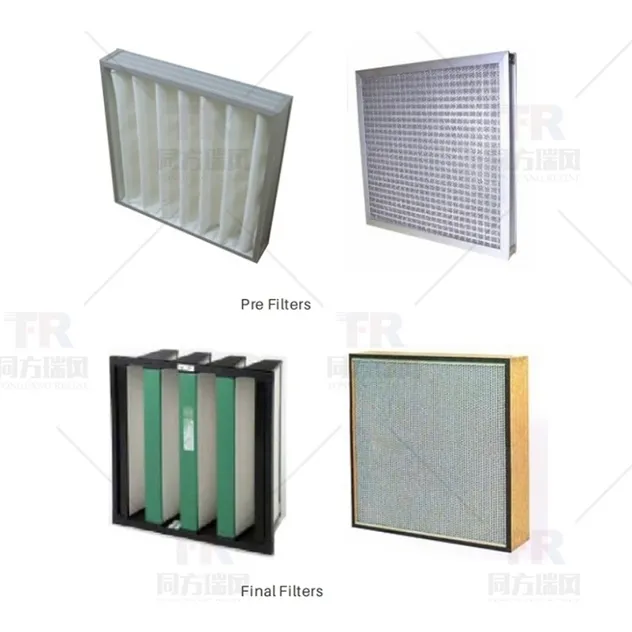

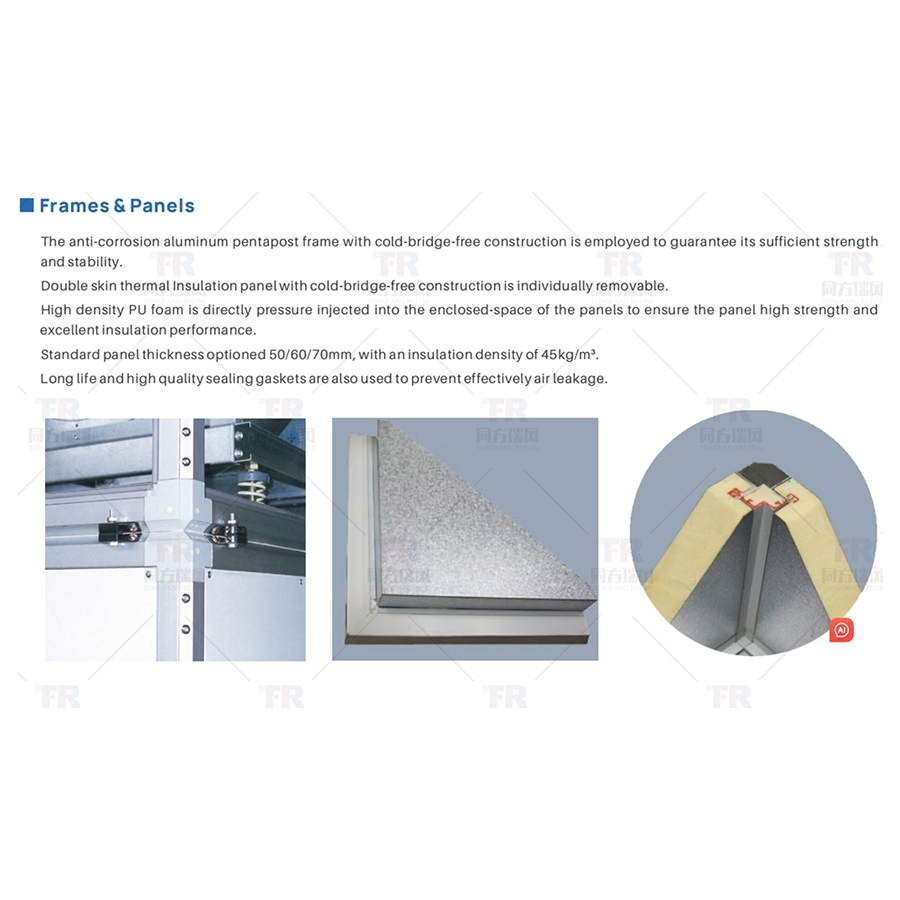

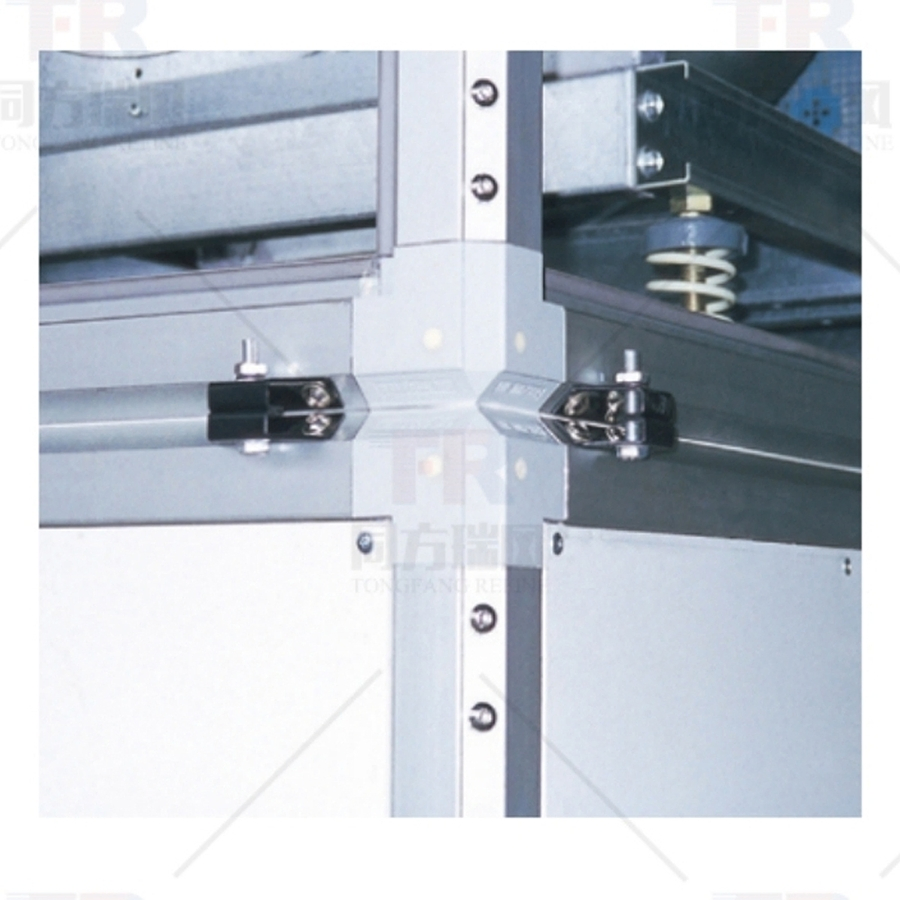

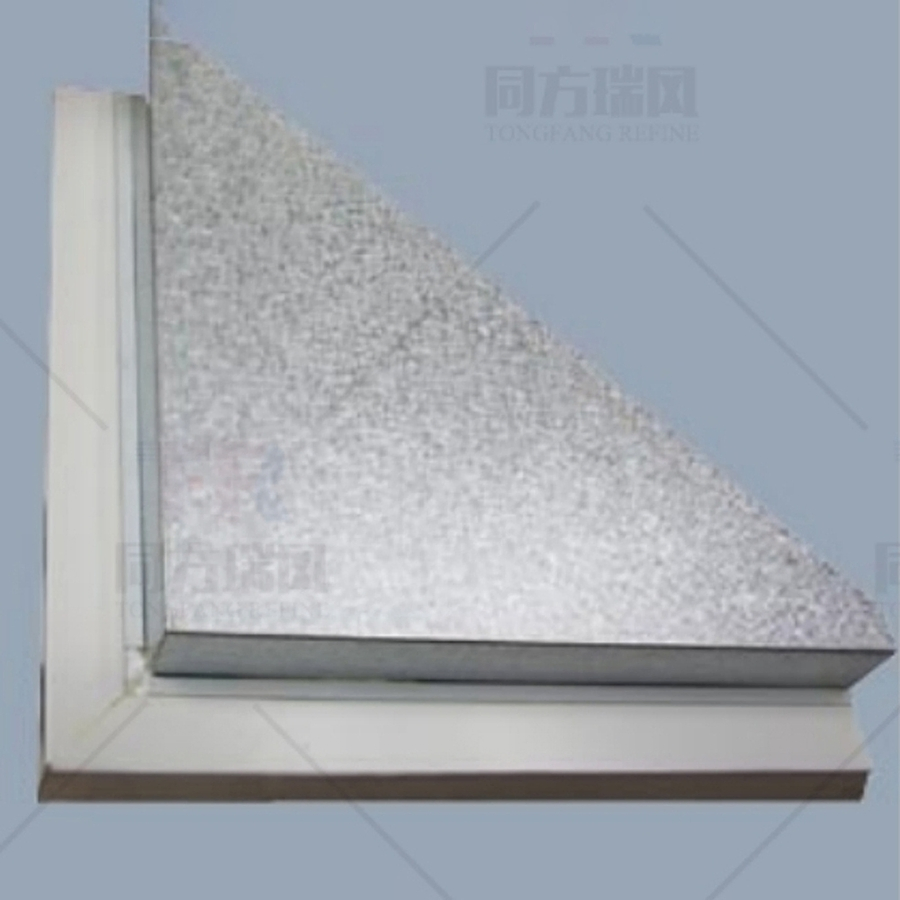

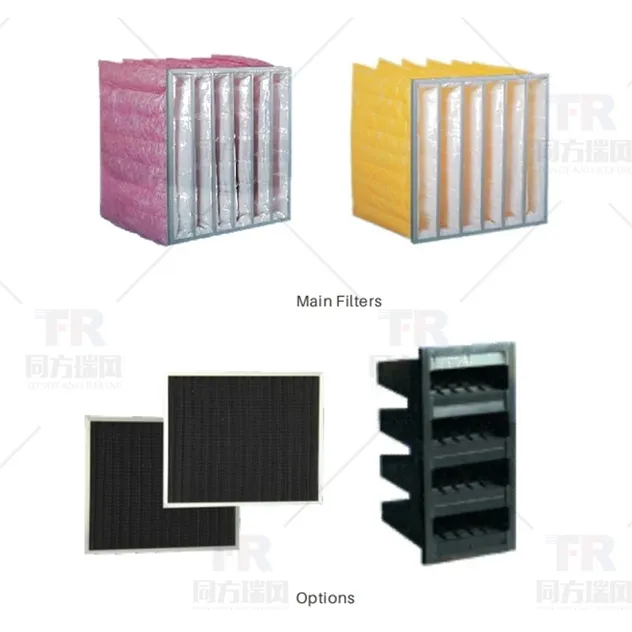

The modular air handling unit comprises a robust corrosion-resistant aluminum alloy frame and detachable polyurethane double-sided insulation panels, facilitating easy maintenance. It consists of essential functional components, including mixed air sections, cooling/heating coils, high-efficiency filters, fans, humidifiers, and soundproofing segments. The system supports outdoor installations and offers on-site assembly for tailored climate control solutions.
Delivers efficient temperature and humidity control with customizable configurations that adapt to various environments.
Advanced dehumidification and heat recovery technologies address energy efficiency while ensuring optimal air quality.
Designed for both comfort and industrial applications, it minimizes maintenance requirements and lowers operational costs.
| Parameter | Specifications |
|---|---|
| All-Heat Cooling Capacity | 11.6-1656 kw |
| Sensible Heat Capacity | 8.2-678 kw |
| Chilled Water Flow | 2.02-285.52 t/h |
| Chilled Water Resistance | 18.7-40.1 kpa |
| Motor Power | 1.1-90 kw |
| Fan Full Pressure | 600-1600 pa |
| Dimensions (Length) | 2420-3740 mm |
| Dimensions (Width) | 760-5610 mm |
| Dimensions (Height) | 720-2580 mm |
| Chilled Water Condition | 7℃ / 12℃ |
| Intake Conditions (FA) | 35℃ / 28℃ |
| Intake Conditions (RA) | 27℃ / 19.5℃ |
Combines mixed air, pre-filter, cooling, heating, and fan components for general residential settings.
Incorporates additional filtration stages for higher air quality in moderate industrial use.
Emphasizes separate temperature and humidity controls for enhanced efficiency in complex environments.
Strict air quality control for hospitals or laboratories using advanced filtration technologies.
