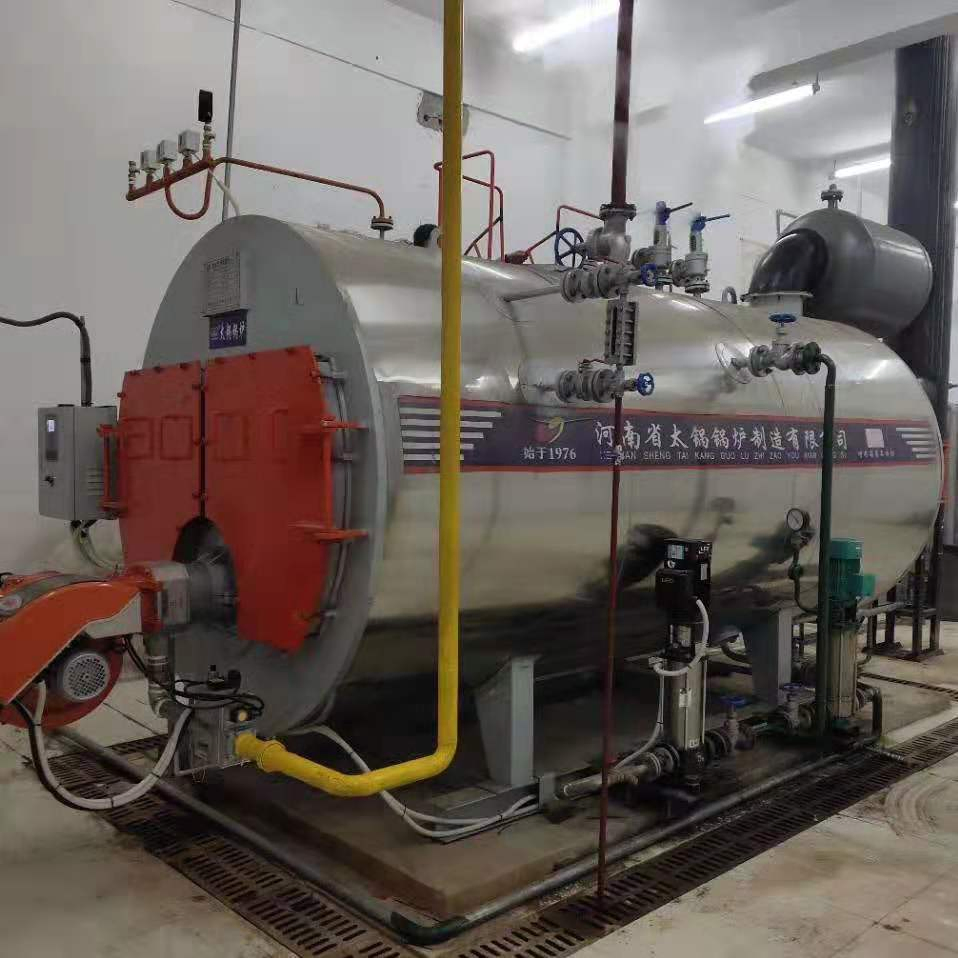

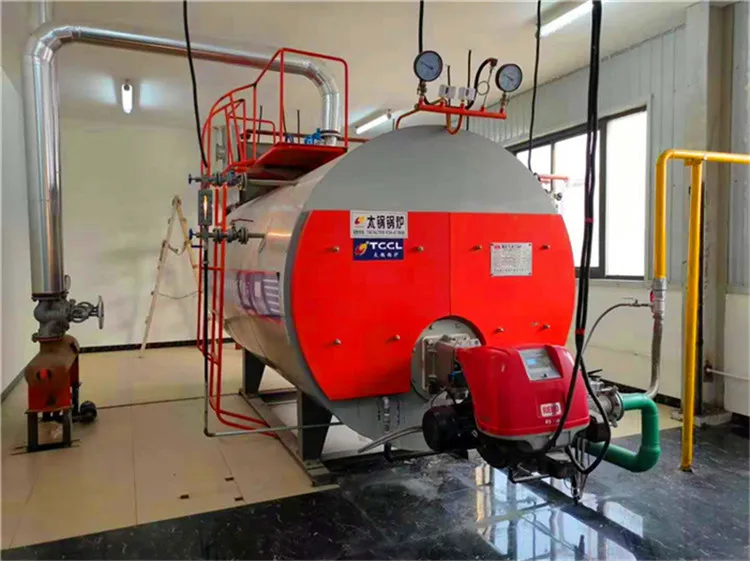

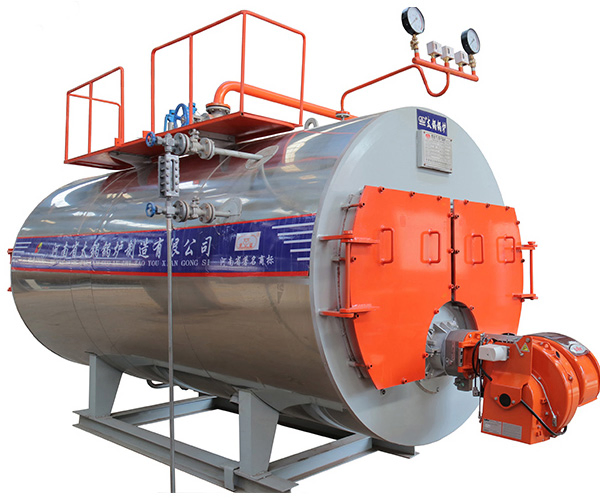

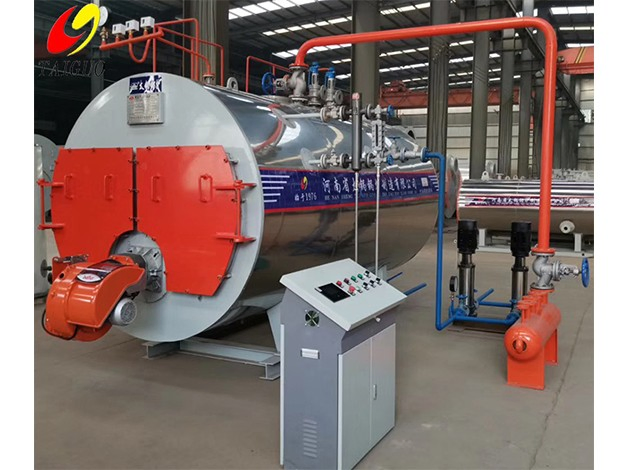

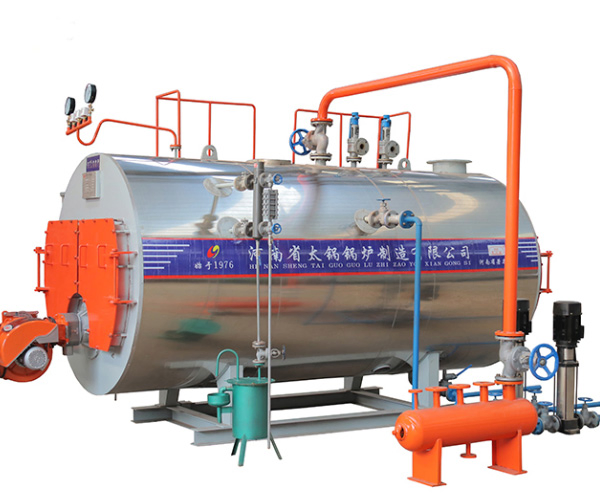

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall (1st pass). High temperature smoke is collected in reversal chamber and enters the 2nd pass (grooved tubes bundle area). After convection, air temperature falls and goes to the front smoke box for the 3rd pass (smooth tubes bundle area), then exhausts to the atmosphere via the chimney.
| Model | Rated Capacity (t/h) | Pressure (Mpa) | Temp (C) | Efficiency (%) | Light Oil (Kg/h) | Natural Gas (Nm³/h) | Weight (t) |
|---|---|---|---|---|---|---|---|
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | ≥96 | 45-100 | 18-100 | 4 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | ≥96 | 137.09 | 165.97 | 8 |
| WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | ≥96 | 272.3 | 329.5 | 13 |
| WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | ≥96 | 134-402 | 80-500 | 17 |
| WNS10 | 10 | 1.25/1.6/2.5 | 194/204/225 | ≥96 | 212-890 | 150-1085 | 22 |
| WNS20 | 20 | 1.25/1.6/2.5 | 194/204/225 | ≥96 | 1380.33 | 1598.44 | 45 |

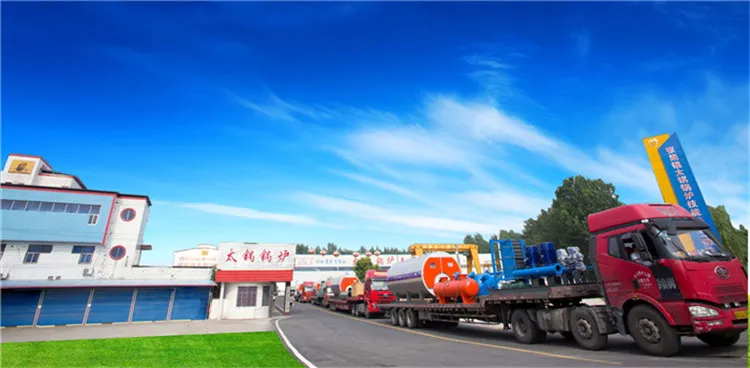

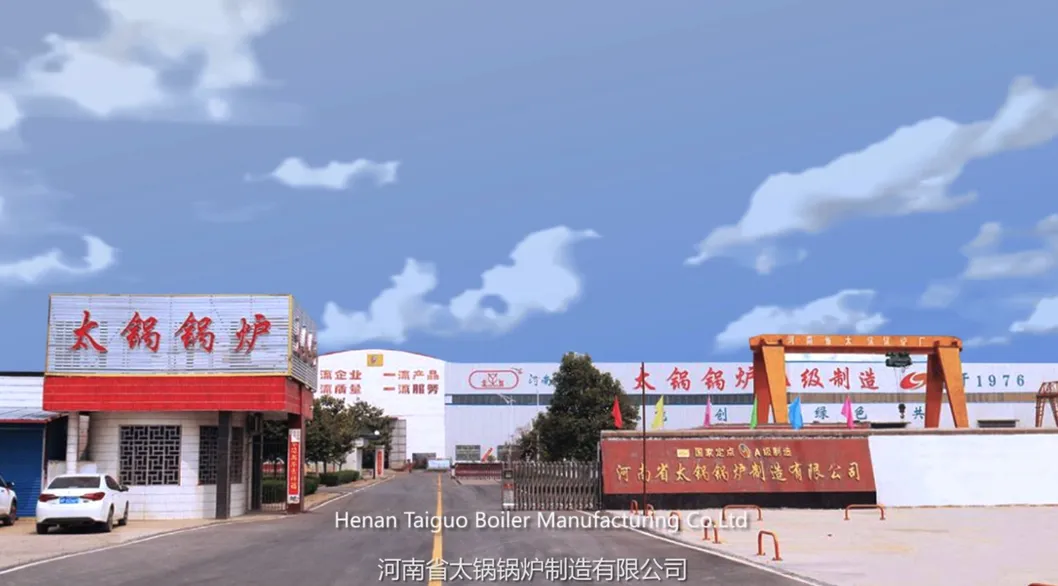

Founded in 1976, we are a professional manufacturer of Grade A industrial boilers. The facility covers an area of 60,000 m², including 45,000m² of construction area and independent physical and chemical laboratories. We offer various industrial solutions including Gas & Oil Fired Boilers, Biomass Fired Boilers, and Thermal Oil Boilers.

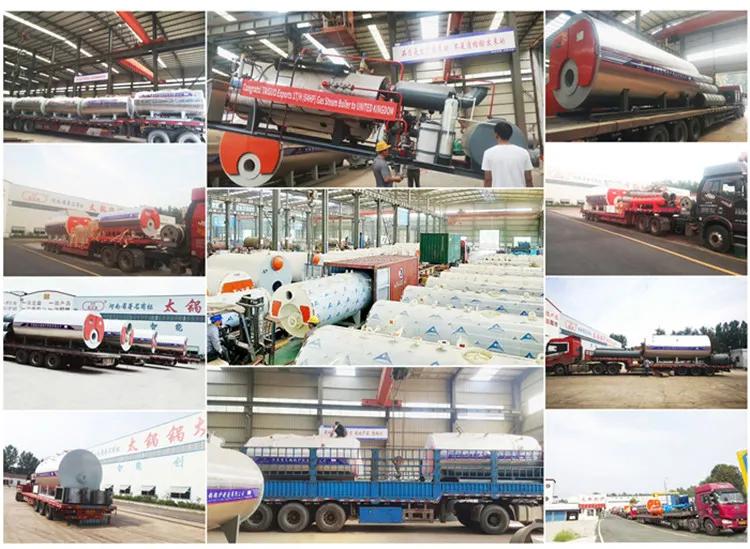

Small boilers are transported in standard containers, while larger units utilize Open-top or Flat Rack containers to ensure safety during delivery.
• Inquiry and consulting support
• Factory visit arrangements
• Overseas engineering service available
• Installation and operation training
